Necessary preliminary tasks

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Remove BEARING BLOCK FOR PEDAL ASSEMBLY .

Disconnect return spring (1).

NOTE: Check grommet (2) for damage, replace if necessary.

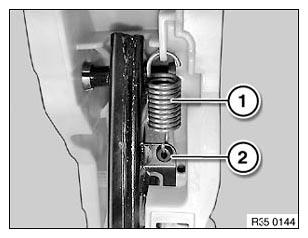

Fig 1: Identifying Return Spring And Grommet

Courtesy of BMW OF NORTH AMERICA, INC.
