63 13 200 Removing and installing/replacing front left or right auxiliary turn indicator, M series

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

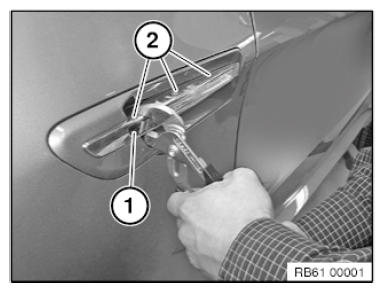

Carefully unlock the chrome inlay (1) using a suitable tool in areas (2).

Fig 1: Unlocking Chrome Inlay Using Suitable Tool

Courtesy of BMW OF NORTH AMERICA, INC.

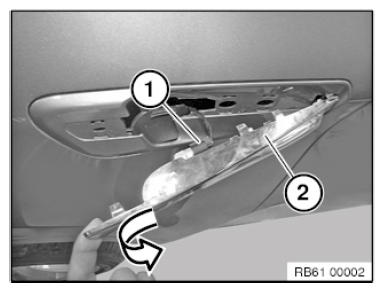

Unfasten plug connection (1) and disconnect.

Remove chrome inlay (2) in direction of arrow.

Fig 2: Removing Chrome Inlay

Courtesy of BMW OF NORTH AMERICA, INC.

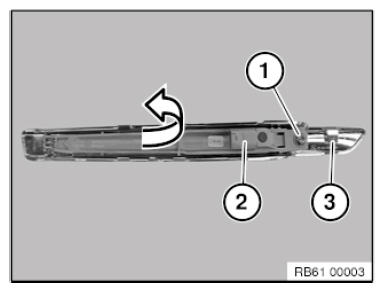

Release screw (1).

Remove turn indicator insert (2) from chrome inlay (3) in direction of arrow.

Installation note:

The chrome inlay (1) must be replaced.

Make sure cables are correctly routed and fitted.

Fig 3: Removing Turn Indicator Insert From Chrome Inlay

Courtesy of BMW OF NORTH AMERICA, INC.
