63 21 183 Removing and refitting/replacing left or right rear light as fitted from 03/2010 (on tailgate)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 318

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary work

Remove LUGGAGE COMPARTMENT LIGHT .

Unfasten plug connection (1) and disconnect.

Slacken nut (2) until clamping claw (3) can be routed past tailgate (4).

Tightening torque 63 21 3AZ .

Installation note:

Make sure clamping claw (3) is correctly seated on tailgate (4).

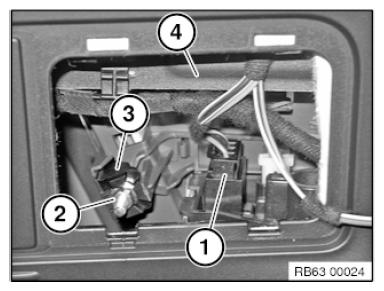

Fig 1: Identifying Tailgate, Plug Connection, Nut And Clamping Claw

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage!
Tape off tailgate with suitable protective film (1).

Lever out rear light (2) with special tool 00 9 318 in direction of arrow.

Installation note:

Make sure gap is uniform all round between rear light (2) and tailgate.

Fig 2: Removing Rear Light Using Special Tool (00 9 318)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Position tabs (1) of rear light exactly over side edge of tailgate.

Make sure sealing frame (2) is correctly seated.

If necessary, replace SEALING FRAME (2).

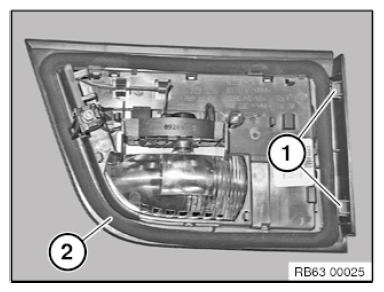

Fig 3: Identifying Sealing Frame And Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, remove BULBS .
