63 31 193 Replacing LED for rear inside door opener

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove REAR DOOR TRIM .

Remove sheathing of wiring harness (1) in area (A).

Cut through wiring harness (1) in area (A) and remove LED for rear inside door opener (2).

Installation:

Adapt length of wiring harness of new LED for rear inside door opener.

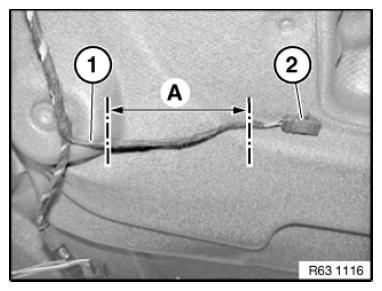

Fig 1: Identifying Wiring Harness And Door Opener

Courtesy of BMW OF NORTH AMERICA, INC.

Connect wiring harness of new LED for rear inside door opener using BUTT CONNECTORS to wiring harness (1).

Wrap wiring harness (1) in insulating tape.
