63 11 731 Replacing left daytime light LED modules

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Necessary preliminary work

Remove LEFT HEADLIGHT .

Release screws (1).

Carefully lift LED module (2) slightly upwards.

Fig 1: Identifying LED Module And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Remove LED module (2).

Installation note:

Always replace LED modules (2) as a pair.

Replace seal for LED module (2).

Make sure LED module (2) is correctly seated.

Note BULB TYPE .

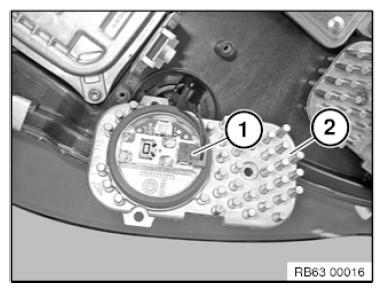

Fig 2: Identifying LED Module And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
