63 14 120 Removing and installing/replacing rear reflector

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317
00 9 323

Unclip rear reflector (1) with special tool 00 9 323 on right side and press inwards with special tool 00 9 317 .

Remove rear reflector (1) towards rear from rear bumper trim.

Fig 1: Removing Rear Reflector Using Special Tool (00 9 323)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) on rear reflector must not be damaged.

If necessary, replace faulty retainer (2).

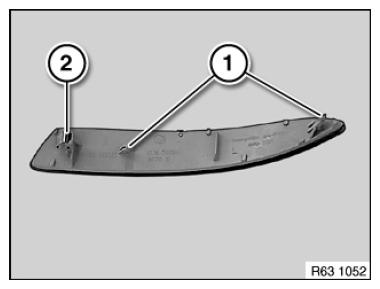

Fig 2: Identifying Catches And Retainer

Courtesy of BMW OF NORTH AMERICA, INC.
