33 21 000 Removing and installing/replacing left or right output shaft (screwed version)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove REAR WHEEL .
Remove rear axle final drive . See 33 10 010 REMOVING AND INSTALLING/REPLACING REAR DIFFERENTIAL or 33 10 016 / 17 REMOVING AND INSTALLING/RENEWING REAR AXLE FINAL DRIVE (DYNAMIC PERFORMANCE CONTROL)

IMPORTANT: Expand anti-twist lock sufficiently to avoid damaging thread when releasing collar nut.

Release collar nut (1), activate parking brake for this purpose.

Installation note:

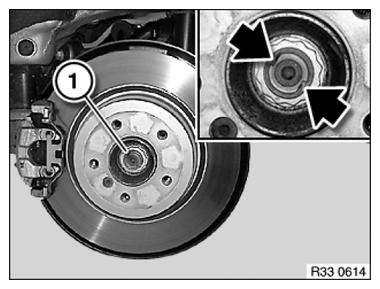

Fig 1: Locating Collar Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Replace collar nut, oil collar nut/wheel bearing contact surface only and tighten down.

No oil permitted on thread of shaft journal or collar nut.

Tightening torque 33 41 1AZ .

Secure collar nut by positive peening on flat areas of output shaft.

IMPORTANT: Secure output shaft against falling out.

Press OUTPUT SHAFT OUT OF DRIVE FLANGE and remove towards center of vehicle.

Replacement only:

With BMW Diagnosis and Information System under:
- Control unit functions
  Perform function check of transfer box (calibration)
