33.... Overview of steering links

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

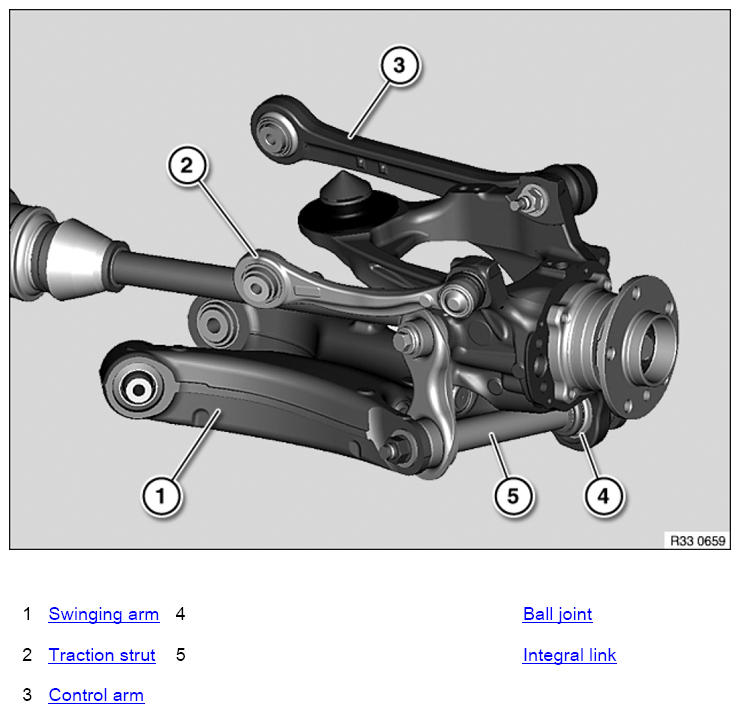

Fig 1: Overview Of Steering Links
G08527867Courtesy of BMW OF NORTH AMERICA, INC.

Safety precautions & general information  . See 00..... LIFTING THE VEHICLE USING A VEHICLE HOIST , 33 00... INSTRUCTIONS (CHASSIS COMPONENTS MADE OF ALUMINUM)  or 00..... RAISING VEHICLE WITH TROLLEY JACK .
