33.... Overview of rear axle support with rubber mounts

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

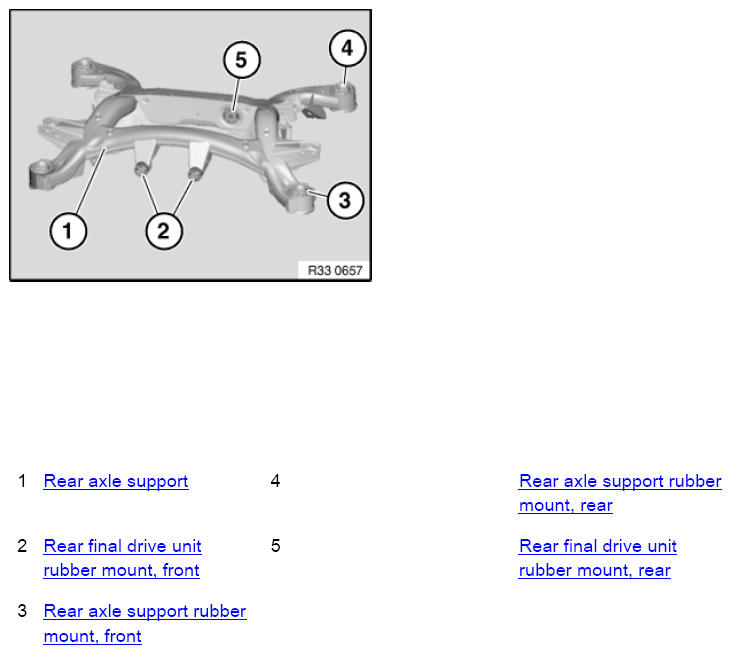

Fig 1: Overview Of Rear Axle Support With Rubber Mounts
G08527866Courtesy of BMW OF NORTH AMERICA, INC.

Safety precautions & general information  . See 00..... LIFTING THE VEHICLE USING A VEHICLE HOIST , 33 00... NOTES ON REPAIRING THREADS  or 00..... RAISING VEHICLE WITH TROLLEY JACK .
