33 111400 Removing and installing/replacing vent line on rear differential (Dynamic Performance Control)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

24 4 050
33 0 110
33 5 206

WARNING: Scalding hazard!
This work may only be carried out on an exhaust system which has cooled down.

Necessary preliminary tasks

Remove exhaust system.

NOTE:

To remove the vent line, do not remove the rear differential entirely.

Position special tool 33 0 110 in conjunction with 24 4 050 on workshop lifter (1).

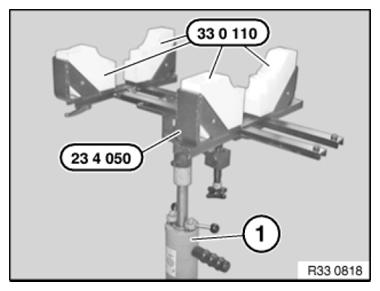

Fig 1: Positioning Special Tools (33 0 110 And 23 4 050) On Workshop Jack

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For clearer illustration, shown with propeller shaft removed.

Support rear differential with prepared special tool 24 4 050.

Lash rear differential with tightening strap 33 5 206 .

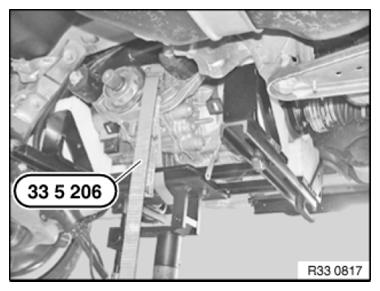

Fig 2: Removing Rear Axle Final Drive Using Tensioning Strap (33 5 206)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For clearer illustration, shown with propeller shaft removed.

IMPORTANT: Risk of damage!
To prevent the rubber mounts from overstretching when the bolts are pulled out, ensure the bolts remains in the rubber mounts.

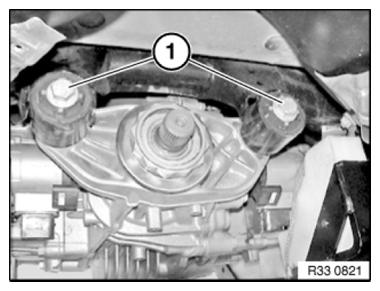

Fig 3: Identifying Rear Axle Final Drive Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 33 17 1AZ.

Installation:

Adhere to the installation sequence at the end of the document in order to prevent distortion of the rear differential during installation and thereby avoid potential complaints about noise.

Release rear bolt (1).

Tightening torque 33 17 2AZ.

Slowly lower rear differential using workshop lifter.

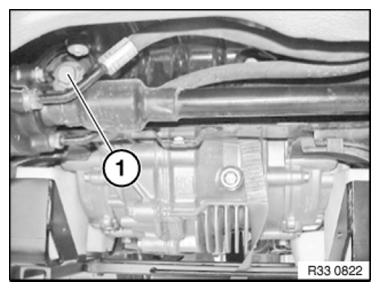

Fig 4: Identifying Rear Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Remove vent line (1) in direction of arrow.

Installation:

Check sealing ring of vent line (1) for damage and replace if necessary.

When installing vent line (1), make sure markings (2) and (3) line up.

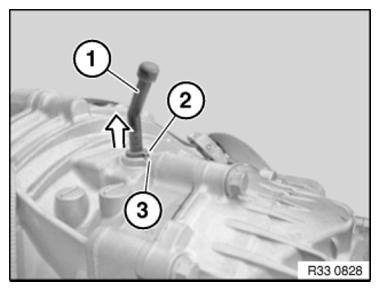

Fig 5: Removing Vent Line

Courtesy of BMW OF NORTH AMERICA, INC.

Installation sequence

Install rear differential with workshop lifter and special tool 24 4 050 in rear axle carrier
Insert bolts (1) (do not tighten down)
Insert bolt (2) from rear (do not tighten down)
Release tightening strap, lower special tool 24 4 050 and move away

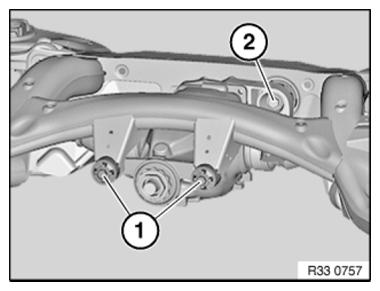

Fig 6: Identifying Rear Axle Final Drive Mounting Bolts
Courtesy of BMW OF NORTH AMERICA, INC.
Tighten down screws (1)
Tightening torque 33 17 1AZ.
Tighten down screw (2)
Tightening torque 33 17 2AZ.

After installation

Correct OIL LEVEL
