33 10 160 Replacing left or right temperature sensor

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Risk of burning!
This work may only be carried out on an exhaust system which has cooled down.

Release screws (1) and remove heat shield (2).

Installation note:

Clean thread to remove all remnants of screw locking adhesive.

Make sure wiring harness (3) is correctly seated on rear differential.

Stick in new screws.

Tightening torque 33 11 4AZ .

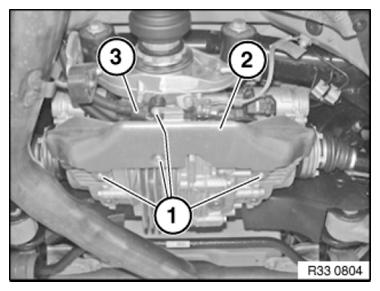

Fig 1: Identifying Heat Shield, Wiring Harness And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Have new part ready to avoid unnecessary escape of differential oil.

Disconnect plug connection (1) and release temperature sensor (3) on housing (2).

Installation note:

Clean rear differential.

Tightening torque 33 11 6AZ .

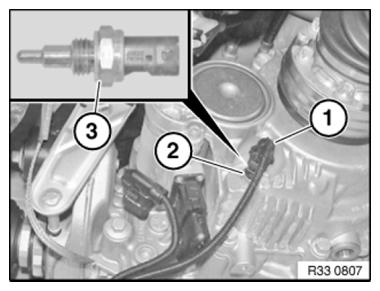

Fig 2: Identifying Temperature Sensor, Plug Connection And Housing

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

Check OIL LEVEL , topping up if necessary.
