Necessary preliminary work

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Remove REAR AXLE FINAL DRIVE .

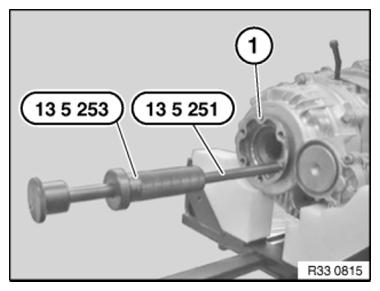

Drive out drive flange (1) with special tools 13 5 251 and 13 5 253 .

Fig 1: Removing Drive Flange Using Special Tools (13 5 251 And 13 5 253)

Courtesy of BMW OF NORTH AMERICA, INC.

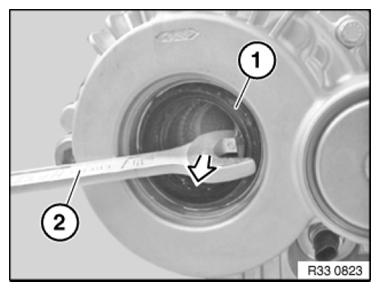

Lever shaft seal (1) with a suitable open-end spanner (2) in direction of arrow out of rear axle final drive.

Fig 2: Removing Shaft Seal From Rear Axle Final Drive Using Open-End Spanner

Courtesy of BMW OF NORTH AMERICA, INC.
