Necessary preliminary tasks

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear differential . See 33 10 010 REMOVING AND INSTALLING/REPLACING REAR DIFFERENTIAL or 33 10 016 / 17 REMOVING AND INSTALLING/RENEWING REAR AXLE FINAL DRIVE (DYNAMIC PERFORMANCE CONTROL) .

Pull out rubber mount with special tools 33 5 153 , 33 5 152 , 33 5 151 , 33 3 103 and 33 3 104 .

NOTE: Make sure special tool 33 5 152 contacts rear axle support correctly.

Use ratchet ring wrench 33 5 105 .

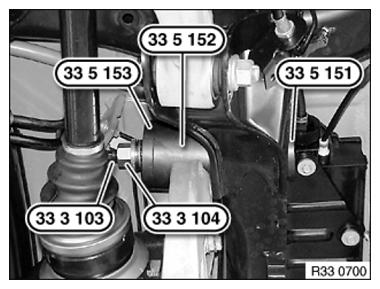

Fig 1: Pulling Out Rubber Mount Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Coat bearing bushing in rear axle carrier and new rubber mount with Circo Light (refer to BMW Parts Service).

Align rubber mount horizontally by way of elongated hole (1).

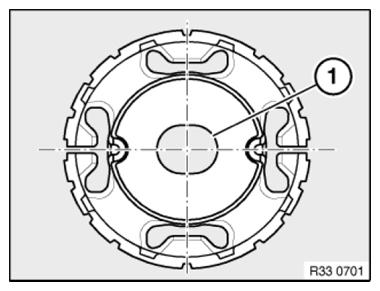

Fig 2: Identifying Alignment Position Of Rubber Mount With Elongated Hole

Courtesy of BMW OF NORTH AMERICA, INC.

Insert rubber mount (1) in special tool 33 5 154 .

Draw in rubber mount (1) with special tools 33 5 155 , 33 5 154 , 33 5 156 , 33 3 103 and 33 3 104 as far as it will go.

NOTE: Make sure special tools 33 5 154 and 33 5 156 contact rear axle support correctly.

Use ratchet ring wrench 33 5 105 .

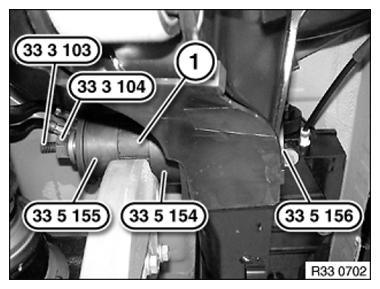

Fig 3: Inserting Rubber Mount Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.
