Necessary preliminary tasks

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear differential . See 33 10 010 REMOVING AND INSTALLING/REPLACING REAR DIFFERENTIAL or 33 10 016 / 17 REMOVING AND INSTALLING/RENEWING REAR AXLE FINAL DRIVE (DYNAMIC PERFORMANCE CONTROL)
Lower rear axle support . See 33 31 503 LOWERING/RAISING REAR AXLE SUPPORT (SWZ00-2040) or 33 31 503 LOWERING/RAISING REAR AXLE SUPPORT (UNIVERSAL LIFTER)

Pull out rubber mount with special tools 33 5 166 , 33 5 163 , 33 5 162 , 33 5 161 , 33 4 466 and 33 4 465 .

NOTE: The milled recess of special tool 33 5 162 must point outward toward the rear axle support.

Use ratchet ring wrench 33 5 105 .

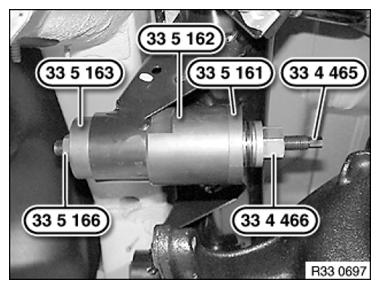

Fig 1: Removing Rubber Mount Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Coat bearing bushing in rear axle carrier and rubber mount with Circolight.

Align rubber mount horizontally by way of slots (1).

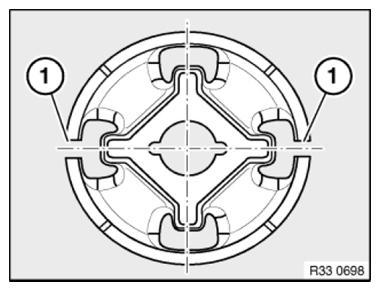

Fig 2: Identifying Alignment Position Of Rubber Mount With Slots

Courtesy of BMW OF NORTH AMERICA, INC.

Insert rubber mount (1) in special tool 33 5 164 .

Draw in rubber mount (1) with special tools 33 5 165 , 33 5 164 , 33 5 163 , 33 4 466 and 33 4 465 as far as it will go.

NOTE: Use ratchet ring wrench 33 5 105 .

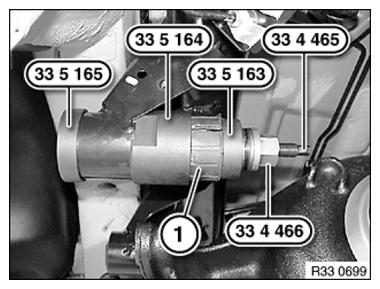

Fig 3: Inserting Rubber Mount Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.
