33 32 091 Replacing a control arm
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
If the control arm is detached from the rear axle support, it is necessary after reinstallation to carry out a wheel/chassis alignment check.
Necessary preliminary tasks
- Remove REAR WHEEL .
- Deactivate and empty AIR SPRING SYSTEM .

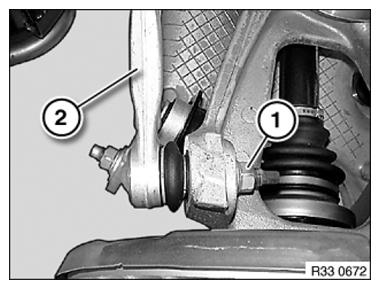

Slacken nut (1).
Remove guide arm (2) from wheel carrier.
Installation:
Keep guide arm to wheel carrier connection clean and free from oil and grease.
Replace self-locking nut.
Tightening torque 33 32 6AZ .

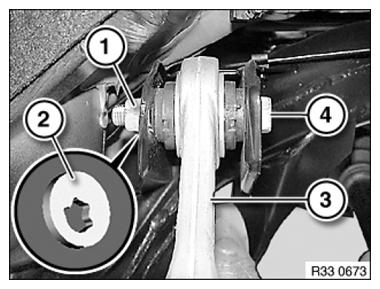

Mark position of eccentric screw (4) to rear axle carrier.
Release nut (1) and remove eccentric washer (2).
Pull out eccentric screw (4) and remove guide arm (3).
Installation:
Refit eccentric washer.
Replace self-locking nut.
Align eccentric bolt to rear axle support by means of marking.
Tighten bolt connection in NORMAL POSITION .
Tightening torque 33 32 5AZ .
After installation
- Perform chassis alignment check . See 32 00 150 KDS WHEEL ALIGNMENT WITH VEHICLE LOAD UP TO DESIGN POSITION or 32 00 155 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD .
