33 32 071 Replacing an upper wishbone
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
If the wishbone is detached from the rear axle support, it is necessary after reinstallation to carry out a wheel/chassis alignment check.
Necessary preliminary tasks
- Remove REAR WHEEL .
- Deactivate and empty AIR SPRING SYSTEM .

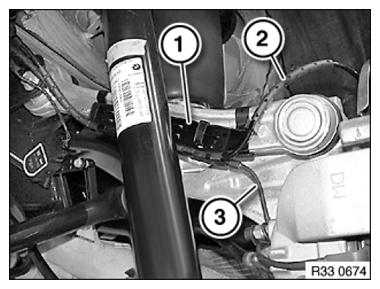

Shown on vehicle at rear right:
Remove holders (1) from control arm.
Installation:
Replace faulty holder.
- 2 = Lead for pulse generator
- 3 = Only on right side: lead for brake pad sensor

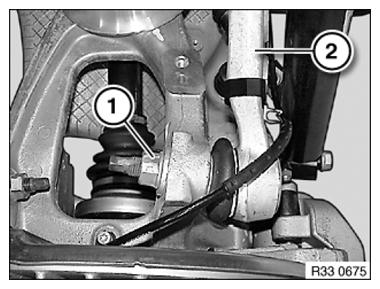

Slacken nut (1).
Remove control arm (2) from wheel carrier.
Installation:
Keep control arm to wheel carrier connection clean and free from oil and grease.
Replace self-locking nut.
Tightening torque 33 32 8AZ .

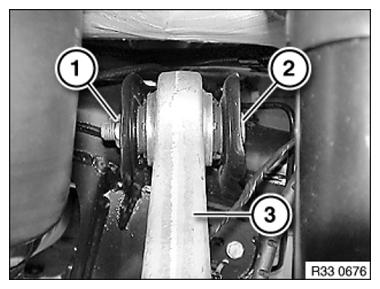

Slacken nut (1).
Release bolt (2) and remove control arm (3).
Installation:
Note insertion direction of screw.
Replace self-locking nut.
Tighten bolt connection in NORMAL POSITION .
Tightening torque 33 32 7AZ .
After installation
- Perform chassis alignment check . See 32 00 150 KDS WHEEL ALIGNMENT WITH VEHICLE LOAD UP TO DESIGN POSITION or 32 00 155 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD
