33 33 111 Replacing all rubber mounts for rear axle carrier

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: Before lowering rear axle support:
In order to avoid damage to lifting platform, perform weight compensation on vehicle.
Load spring strut domes with sand bags.

Necessary preliminary tasks

Lower rear axle support . See 33 31 503 LOWERING/RAISING REAR AXLE SUPPORT (SWZ00-2040) or 33 31 503 LOWERING/RAISING REAR AXLE SUPPORT (UNIVERSAL LIFTER)

WARNING: Danger of explosion!
Do not point air jet from hot-air blower at fuel tank.

Withdraw rubber mount using special tools 33 4 140 , 33 4 155 , 33 4 156 and 33 5 171 from rear axle support bush.

NOTE: Make sure special tool 33 5 171 is correctly positioned in relation to rubber mount.

Make sure special tool 33 4 140 is correctly supported on rear axle support bush.

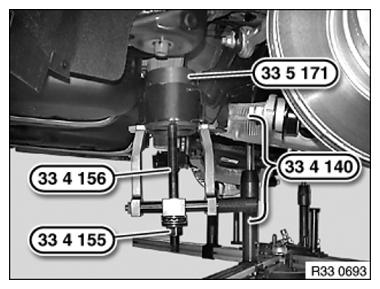

Fig 1: Removing Rubber Mount From Rear Axle Support Bush Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Using a hot air blower, heat bearing bushing at max. 600 °C outlet temperature for approx. 2 minutes.

Applicable to front rubber mount:

IMPORTANT: Notch (1) must point to right and round rubber mount opening (2) must point downwards.

Coat rubber mount (3) with Circo Light.

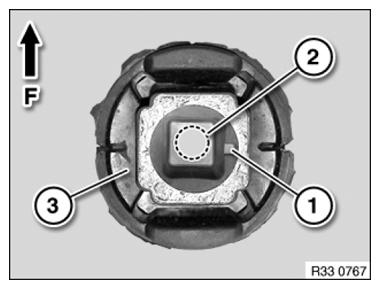

Fig 2: Identifying Front Rubber Mount, Rubber Mount Opening And Notch

Courtesy of BMW OF NORTH AMERICA, INC.

Applicable to rear rubber mount:

IMPORTANT: Notch (1) must point to left and round rubber mount opening (2) must point downwards.

Coat rubber mount (3) with Circo Light.

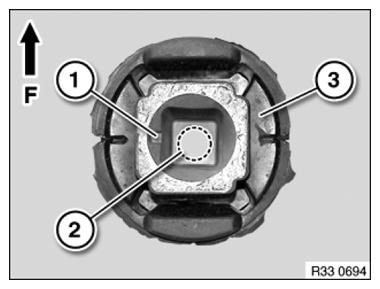

Fig 3: Identifying Rear Rubber Mount, Rubber Mount Opening And Notch

Courtesy of BMW OF NORTH AMERICA, INC.

Draw in rubber mount (1) with special tools 33 5 173 , 33 5 172 , 33 4 155 and 33 4 156 as far as it will go into rear axle support bush.

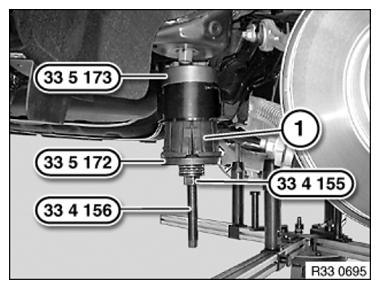

Fig 4: Installing Rubber Mount Into Rear Axle Support Bush Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

After installation

Activate and fill AIR SUSPENSION SYSTEM .
Bleed BRAKING SYSTEM .
