Section 3044 (Airbag, Audio, Navigation And Anti-Theft - Repair)
>>
Airbag Triggering Unit, Diagnosis Unit
>>
65 77... Overview of sensors for airbag system
65 77... Overview of sensors for airbag system
WARNING:
This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

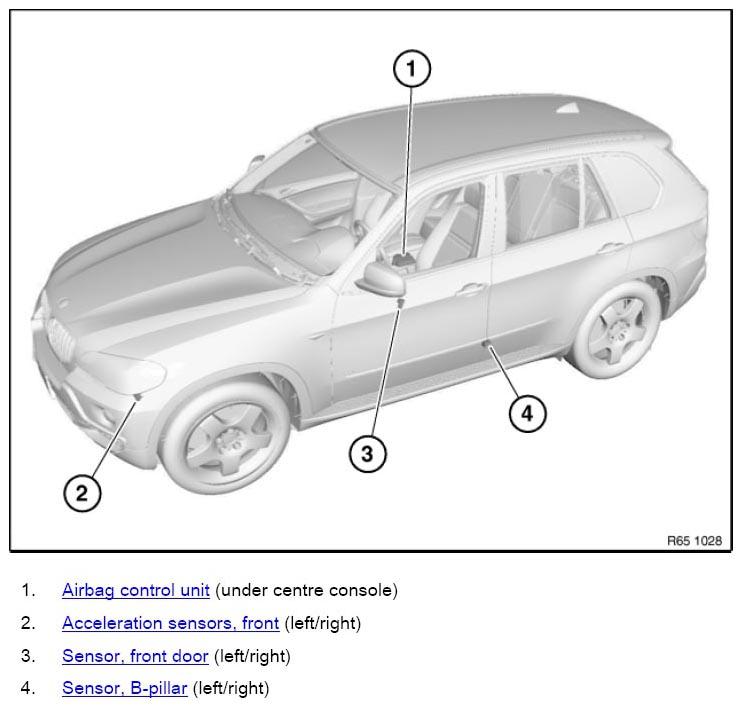

Fig 1: Overview Of Airbag System Sensors
Courtesy of BMW OF NORTH AMERICA, INC.
