Preparation Of New Part

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

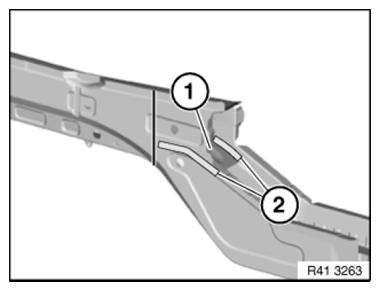

Mark engine carrier in accordance with severance cut on vehicle and cut.

IMPORTANT: Cut outer metal sheet only.
Do not cut through reinforcement (1).

Cut weld joints on both sides in areas (2).

Adjust new part to fit with straightening attachment or universal mount.

Fig 1: Identifying Cutting Weld Joint Areas And Reinforcement

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

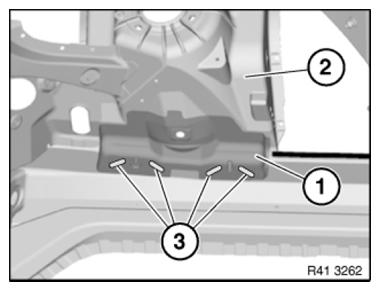

Adjust wheel arch support (1) to fit in conjunction with wheel arch (2).

Remove wheel arch (2).

Weld new part (1) in areas (3).

Fig 2: Identifying Wheel Arch Support Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

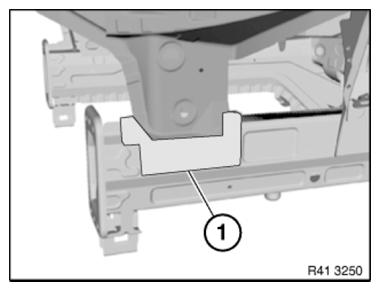

Weld new parts in area (1).

Fig 3: Identifying Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

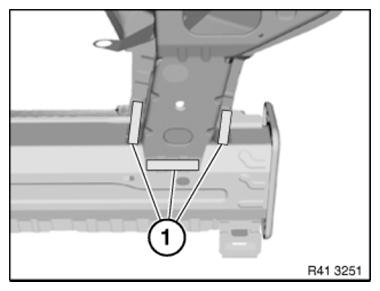

Weld new parts in areas (1).

Fig 4: Identifying Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.
