41 00... Overview Of Spring Support Repair Elements

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Component

Repair element

Part number

Matching

(1) Spring support

Helicoil thread insert M10 ⁽¹⁾

07 14 7 046 145

V-strut on spring support

Helicoil thread insert M6 ⁽¹⁾

07 14 6 046 334

Blind rivet nut M10

07 14 6 975 569

Threaded bolt with ball head for gas strut

⁽¹⁾	Necessary tools can be found in the Aftersales Assistance Portal (ASAP):

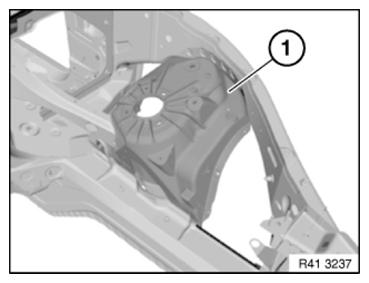

Fig 1: Identifying Spring Support

Courtesy of BMW OF NORTH AMERICA, INC.

Carry out thread repair with HELICOIL THREAD INSERT .

Read and comply with tool manufacturer's instructions.
