Necessary Preliminary Tasks

Adjust new part to fit with straightening attachment.

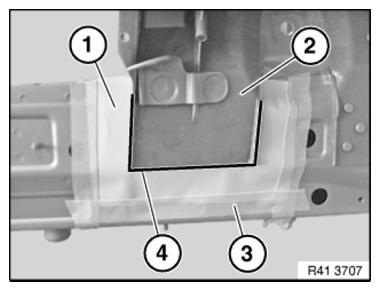

Insert paper stencil (1) between new component (2) and engine carrier and secure with adhesive tape (3).

Carry over contour (4) of new component to stencil.

Remove new component.

Fig 1: Securing Paper Stencil Using Adhesive Tape

Courtesy of BMW OF NORTH AMERICA, INC.

1. = contour of new component.

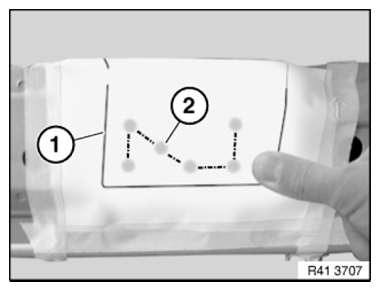

Carry over positions of holes (2) to stencil by pressing down with thumbs.

Remove stencil.

Fig 2: Securing Paper Stencil Using Adhesive Tape

Courtesy of BMW OF NORTH AMERICA, INC.

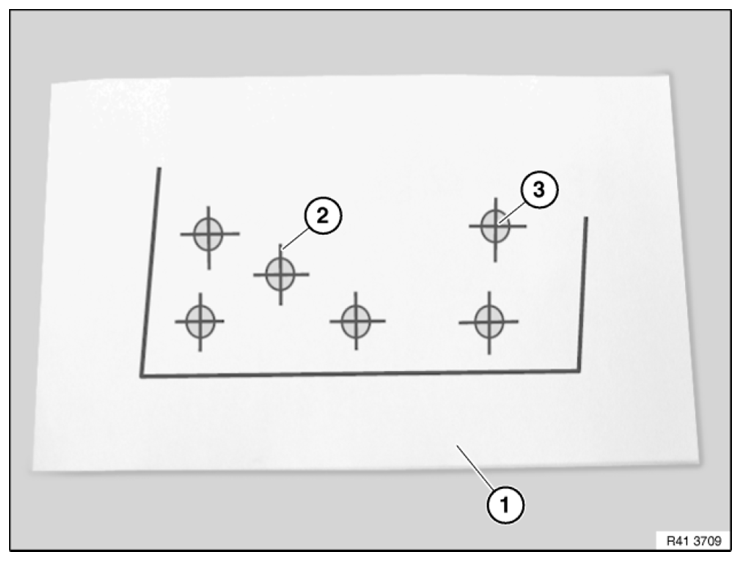

Fig 3: Identifying Stencil Holes With Crosses And Centrepoints

Courtesy of BMW OF NORTH AMERICA, INC.

Lay stencil (1) on a flat surface.

Mark center points of holes with crosses (2).

Then pierce paper through center points (3) of holes with a pointed object.

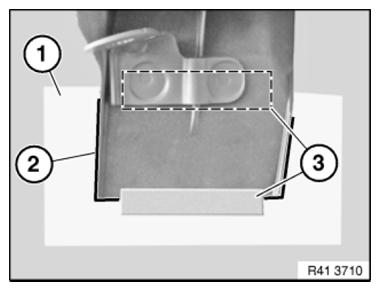

Align stencil (1) according to contours (2) to inside of new component and secure with adhesive tape (3).

Fig 4: Securing Stencil Using Adhesive Tape

Courtesy of BMW OF NORTH AMERICA, INC.

Turn over new component.

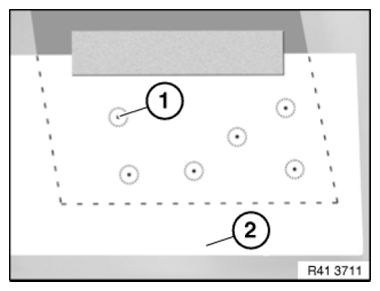

Set punch marks at pierced center points (1).

Grip directly under punch marks for marking with punch.

Remove stencil (2).

Fig 5: Identifying Stencil And Punch Marks

Courtesy of BMW OF NORTH AMERICA, INC.

Drill holes to approx. 3 - 4 mm dia. at punch marks (1).

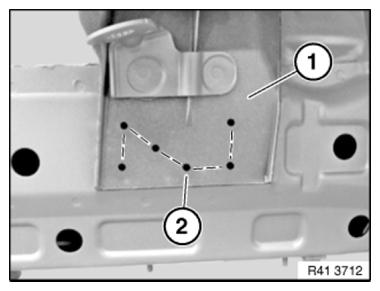

Position new component (1) with straightening attachment on vehicle.

Drill out holes (2) to 6.7 mm dia.

Fig 6: Identifying Component Position And Drill Holes

Courtesy of BMW OF NORTH AMERICA, INC.
