New Part Preparation

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Mark severance cuts on the new part according to vehicle and cut.

Prepare reinforcement plate(s) (bonded) at all severance cuts.

At the severance cut of the C-pillar in the area of the water channel: Prepare the reinforcement plate, universal.

Mark severance cut (1) in accordance with vehicle and cut.

Mark severance cut (2) at component edge and cut.

Open weld joints in areas (3) and remove components (4).

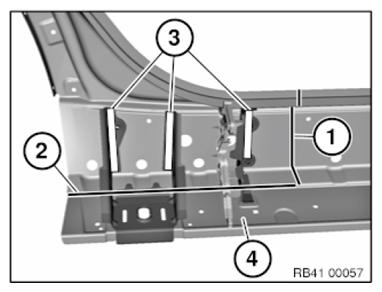

Fig 1: Identifying Severance Cut And Weld Joints Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut (1) in accordance with vehicle and cut.

Separate weld joints in areas (2) and remove component (3).

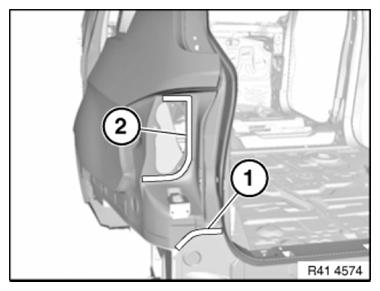

Fig 2: Identifying Weld Joints Areas And Component

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust new part to fit and secure.

In areas (1) to (3), set 4.2 mm dia. holes for N3 blind rivets:

In areas (4), set three 6.8 mm dia. holes for N1 blind rivets:

IMPORTANT: When introducing holes in the area of the sill, watch out for the add-on parts.

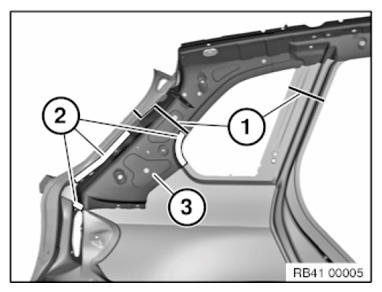

Fig 3: Identifying Blind Rivets Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Area	Number
1	4
2	3
3	2
4	3

In areas (1) and (2) set 4.2 mm dia. bore holes for blind rivets:

Area	Number
1	2
2	4

Remove new part again and deburr bore holes.

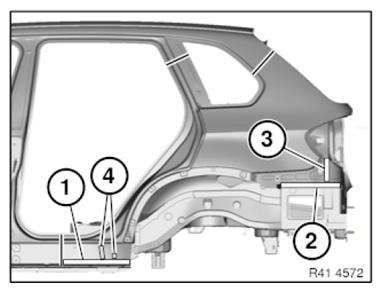

Fig 4: Identifying Blind Rivets Areas

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not grind/sand new part in area of bonding surfaces.
