Preparation Of New Part
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
Mark new part in accordance with severance cuts above and cut.
Installation:
Adjust new part to fit with straightening attachment or universal mount.
Weld in reinforcing panels See 41 00... INSTALLING A CAVITY ACOUSTIC BAFFLE (EXPANDED) or 41 00... INSTALLING A CAVITY ACOUSTIC BAFFLE (NOT EXPANDED) at all severance cuts.

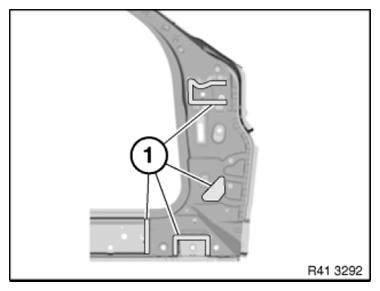

Apply ADHESIVE in areas (1).
