Removing Outer And Inner Tail Panel Sections

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Most of operation is described on the left side. Right side identical.

Open welded connections in areas (1).

Open brazed connections in areas (2).

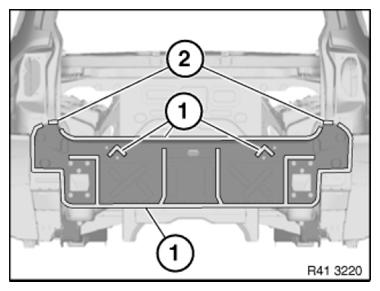

Fig 1: Identifying Welded And Brazed Connections Areas

G08528666

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

Open bonded connections in areas (2).

Remove outer rear trim panel section.

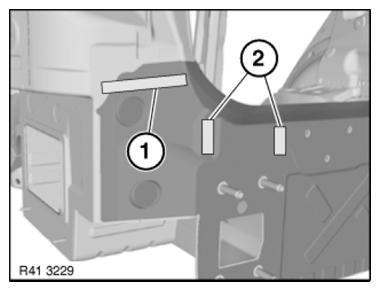

Fig 2: Identifying Welded And Bonded Connections Areas

G08528667

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1).

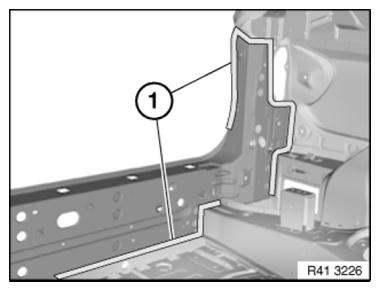

Fig 3: Identifying Welded Connections Areas

G08528668

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1).

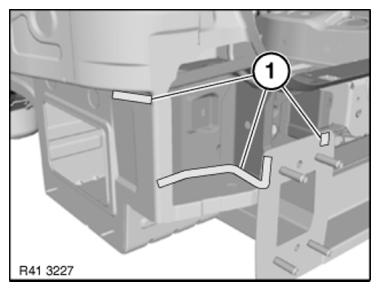

Fig 4: Identifying Welded Connections Areas

G08528669

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1).

Remove inner rear trim panel section.

NOTE: The new part is joined during installation in areas (1) by plug-welding.

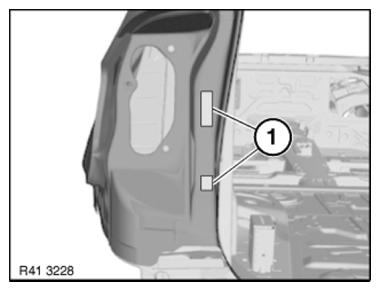

Fig 5: Identifying Welded Connections Area

G08528670

Courtesy of BMW OF NORTH AMERICA, INC.
