Installing Outer And Inner Tail Panel Sections

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Clean all bonding surfaces on new part and on vehicle with cleaning agent R1.

Apply adhesive to bonding surfaces.

NOTE: When mounting rear trim panel, make sure there is sufficient adhesive on bonding surfaces.

Install rear trim panel inner section and rivet with blind rivets.

Use 2 punch rivets N4 in area (1).

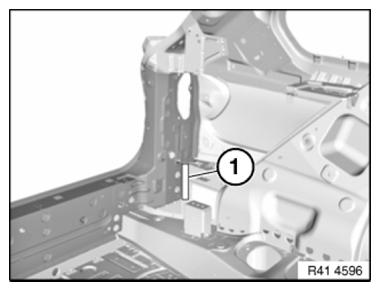

Fig 1: Identifying Blind Rivets Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Weld new part in this area (1) using metal active gas welding.

2 weld seams, each with length of 20 mm.

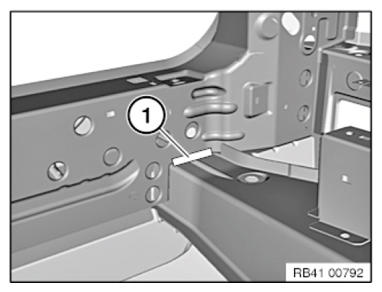

Fig 2: Identifying MAG Weld Area

Courtesy of BMW OF NORTH AMERICA, INC.

MAG weld new part in areas (1) and (2).

For this purpose, set one weld seam with length of 20 mm in each case.

In area (3) use one punch rivet N4.

NOTE: Area (1) not present on all vehicles.

Fig 3: Identifying MAG Weld And Punch Rivet Area

Courtesy of BMW OF NORTH AMERICA, INC.

Use 3 punch rivets in area (1).

NOTE: No riveting in areas (2).

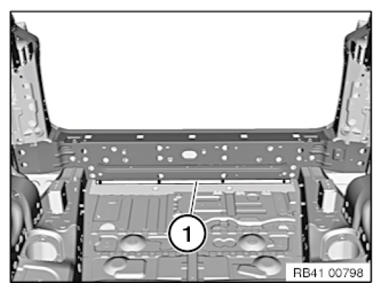

Fig 4: Identifying Punch Rivets And Riveting Area

Courtesy of BMW OF NORTH AMERICA, INC.

Mount rear trim panel outer section and rivet with blind rivets.

Use 22 punch rivets in area (1).

Use 15 punch rivets in area (2).

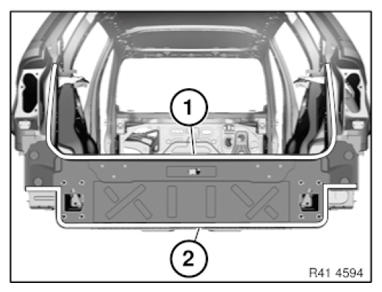

Fig 5: Identifying Punch Rivets Area

Courtesy of BMW OF NORTH AMERICA, INC.

Press rear trim panel in areas (1) and (2) and remove emerging adhesive.

Until the adhesive hardens:

In area (1) install hinges for lower section of tailgate.

In the area (2) install support for bumper panel.

IMPORTANT: Prevent emerging adhesive from coming into contact with support and hinges.

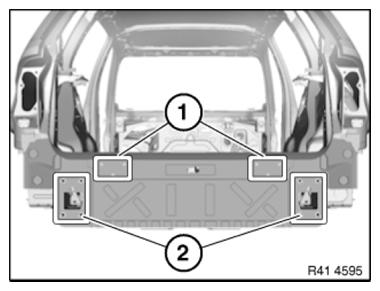

Fig 6: Identifying Lower Section Tailgate Hinges And Bumper Panel Support Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Install 4 EMC SCREWS in area (1).

Fig 7: Identifying EMC Screws Installing Areas

Courtesy of BMW OF NORTH AMERICA, INC.

In area (1) install one EMC screw.

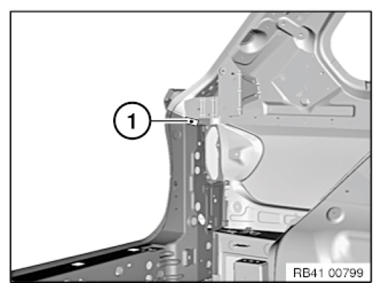

Fig 8: Identifying EMC Screws Installing Areas

Courtesy of BMW OF NORTH AMERICA, INC.

In area (1) install one EMC screw.

Fig 9: Identifying EMC Screws Installing Areas

Courtesy of BMW OF NORTH AMERICA, INC.

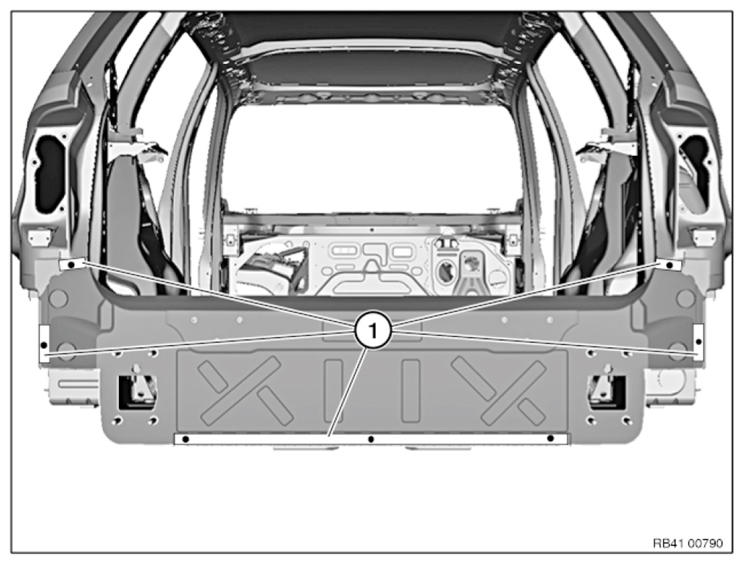

Fig 10: Identifying EMC Screws Installing Area On Hardening Adhesive

Courtesy of BMW OF NORTH AMERICA, INC.

After hardening of the adhesive in areas shown (1), install 4 EMC screws.
