Removing Rear Trim Panel

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Operation described predominantly on the left side. Right side identical.

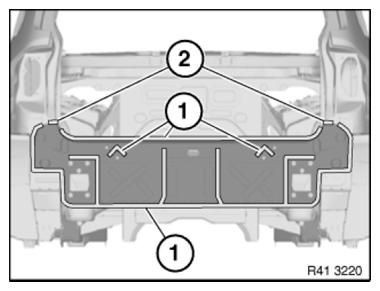

Open welded connections (1).

Open brazed connections (2).

Fig 1: Identifying Welded And Brazed Connections

Courtesy of BMW OF NORTH AMERICA, INC.

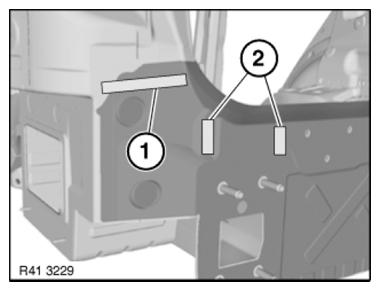

Open welded connections in area (1).

Open bonded connections in areas (2).

Remove rear trim.

Fig 2: Identifying Welded And Bonded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.
