Preparation Of New Part
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
Adjust rear trim panel in combination with rear lid and rear lights to fit and secure.

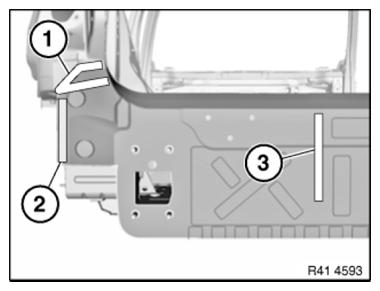

In areas (1) to (3), set 4.8 mm dia. holes for blind rivets:
Courtesy of BMW OF NORTH AMERICA, INC.
Remove new part again and deburr bore holes.
IMPORTANT:
Do not grind/sand new part in area of bonding surfaces.
