Installing Rear Trim Panel

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Clean all bonding surfaces on new part and on vehicle with cleaning agent R1.

Apply adhesive to bonding surfaces.

Install rear trim panel and rivet with blind rivets.

NOTE: When mounting rear trim panel, make sure there is sufficient adhesive on bonding surfaces.

Use 12 punch rivets in area (1).

Use 15 punch rivets in area (2).

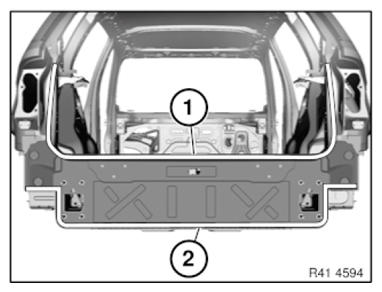

Fig 1: Identifying Punch Rivets Area

Courtesy of BMW OF NORTH AMERICA, INC.

Press rear trim panel in areas (1) and (2) and remove emerging adhesive.

Until the adhesive hardens:

In the area (1) install hinges for tailgate lower section

In the area (2) install support for bumper panel.

IMPORTANT: Prevent emerging adhesive from coming into contact with support and hinges.

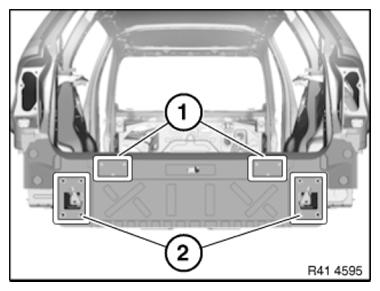

Fig 2: Identifying Lower Section Tailgate Hinges And Bumper Panel Support Areas

Courtesy of BMW OF NORTH AMERICA, INC.

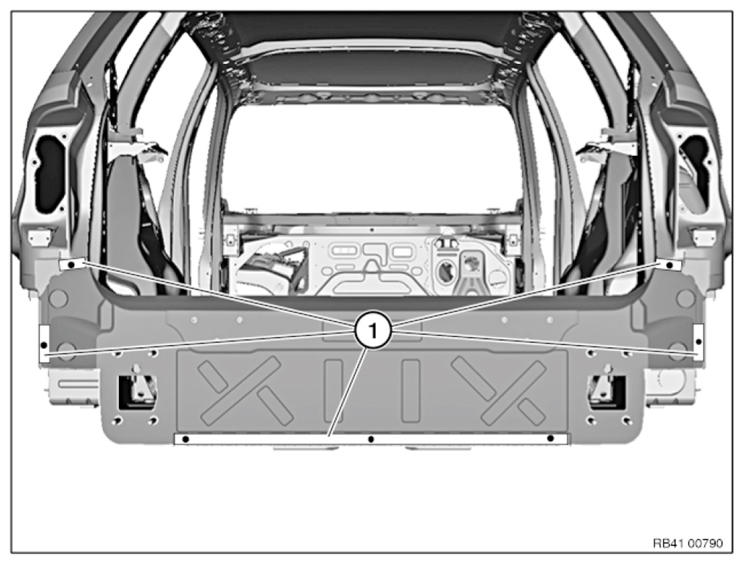

Fig 3: Identifying EMC Screws Installing Area On Hardening Adhesive

Courtesy of BMW OF NORTH AMERICA, INC.

After the adhesive hardens, install 7 EMC SCREWS in areas shown (1).
