23..... Universal transmission retaining bridge

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

NOTE:
  • The transmission retaining bridge 24 0 200 is suitable for both manual and automatic transmissions
IMPORTANT: Adapters and spindles must be adapted for positive locking to the transmission.
(Risk of injury)

Adapt adapters (1) and spindle with thrust piece (3) to transmission.

Adapt length with slide (2).

Screw in spindle (4).

IMPORTANT: Before mounting on assembly stand 00 1 450, check retaining bridge for secure seating.

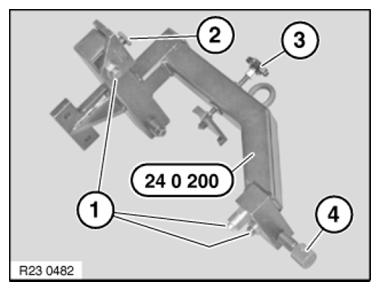

Fig 1: Identifying Adapters, Transmission Thrust Piece And Spindle
G08527410Courtesy of BMW OF NORTH AMERICA, INC.
