84 31 020 Removing and installing/replacing hands-free system speaker
WARNING: This page is about a different car, the 2005 BMW 545i and 2004 BMW 545i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary Preliminary Tasks:
- Remove trim panel for pedal assembly. Refer to 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

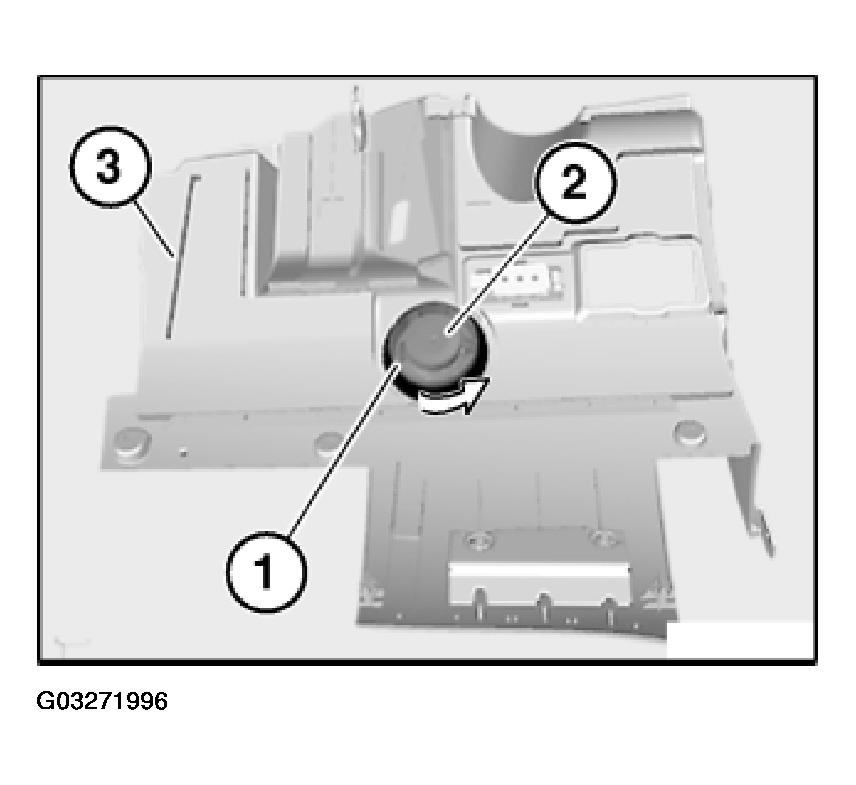

Screw on threaded ring (1) in direction of arrow and remove hands-free system speaker (2) from trim for pedal assembly (3).
