52 26... Removing and installing inner fold trim
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove BACKREST COVER .
- Remove OUTER SLIDE TRIM .

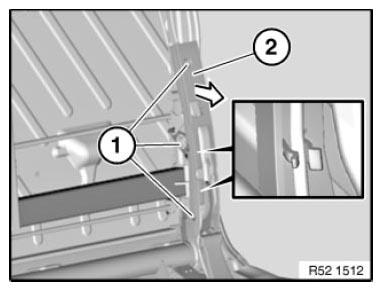

Trim, fold, inner:
Release screws (1).
Unclip trim (2) in direction of arrow.
Unclip Bowden cable from trim.
