52 26... Removing and installing crossmember trim

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1).

Remove trim (2) towards front.

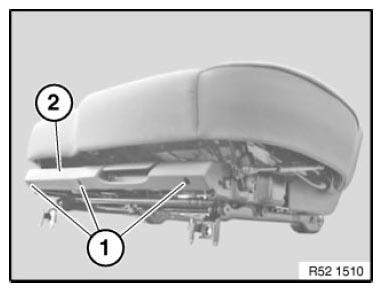

Fig 1: Identifying Crossmember Trim And Screws
G08529815Courtesy of BMW OF NORTH AMERICA, INC.
