52 26 301 Removing and installing/replacing release unit for left or right backrest

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove TRIM FOR RELEASE UNIT .

Release screw (1).

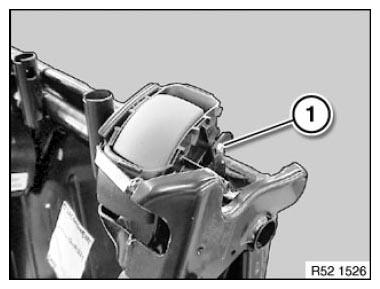

Fig 1: Identifying Release Unit Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Remove release unit (1) in direction of arrow.

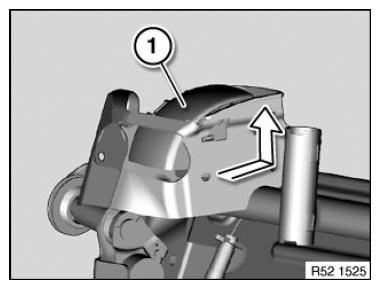

Fig 2: Removing Release Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage Bowden cable from release unit.

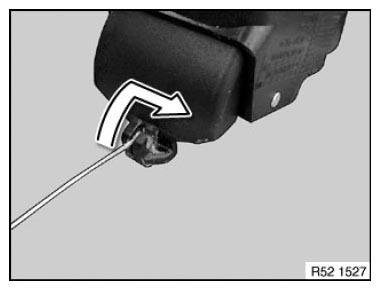

Fig 3: Disengaging Bowden Cable From Release Unit

Courtesy of BMW OF NORTH AMERICA, INC.
