52 26 032 Removing and installing/replacing cup holders in center armrest

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

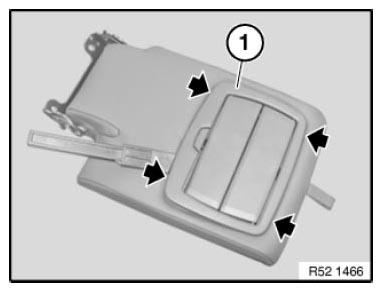

Unclip trim (1) with plastic wedge.

Installation:

Replace trim (1) if retaining lugs are faulty.

Fig 1: Locating Trim Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

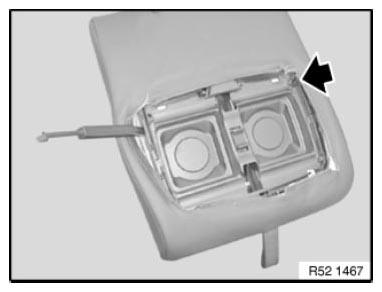

Lever cup holders on left and right out of center armrest with plastic wedge.

Fig 2: Disconnecting Cup Holders On Left And Right Out Of Centre Armrest Using Plastic Wedge

Courtesy of BMW OF NORTH AMERICA, INC.

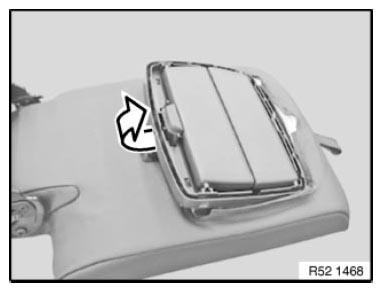

Remove cup holders from center armrest.

Fig 3: Removing Cup Holders From Centre Armrest

Courtesy of BMW OF NORTH AMERICA, INC.
