52 26 008 Removing and installing/replacing left/right sides of backrest on rear seat backrest (through-loading)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Pull seat belt to middle and place behind head restraint.

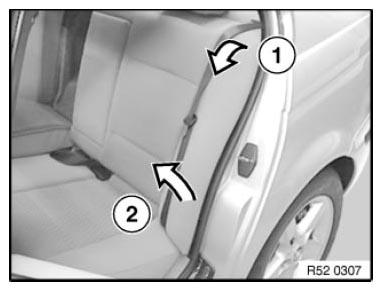

Unclip backrest side section in direction of arrow (1) towards front and pull out in direction of arrow (2).

Fig 1: Disconnecting Backrest Side Section

Courtesy of BMW OF NORTH AMERICA, INC.

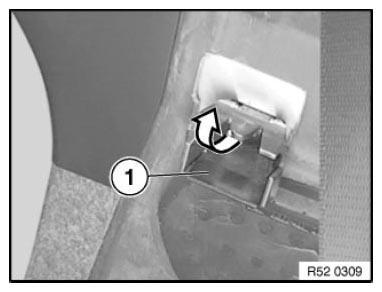

If necessary, pull out clip (1) towards front.

Fig 2: Pulling Out Clip Towards Front

Courtesy of BMW OF NORTH AMERICA, INC.

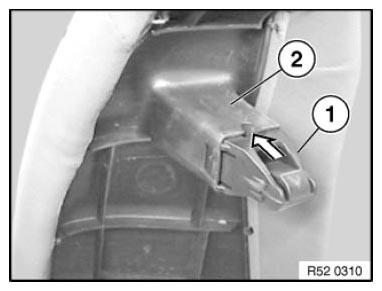

Check clip (1) and locator (2) for damage.

Snap clip (1) into locator (2) of backrest side section.

Fig 3: Inserting Clip Into Locator Of Backrest Side Section

Courtesy of BMW OF NORTH AMERICA, INC.

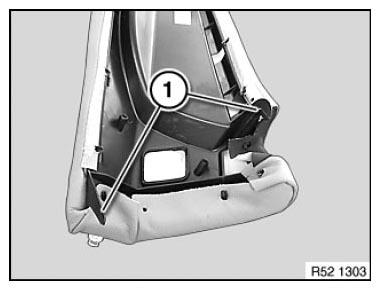

Insert guides (1) into locators.

Clip backrest side section at top into place.

Installation:

Make sure backrest side section is correctly seated in locators.

Fig 4: Identifying Locators Guides

Courtesy of BMW OF NORTH AMERICA, INC.
