52 16... Replacing padding for front seat thigh support

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

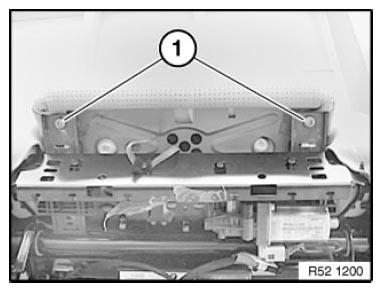

Release screws (1).

Installation:

Insert screws (1) with Loctite.

Fig 1: Identifying Front Seat Screws

Courtesy of BMW OF NORTH AMERICA, INC.

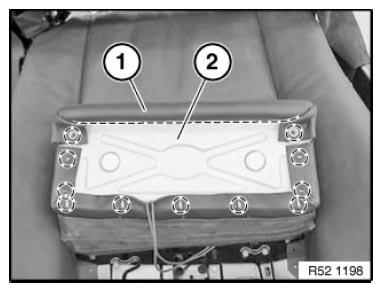

Unhook seat cover (1) from marked area.

Remove carrier (2) for thigh support.

Fig 2: Identifying Seat Cover And Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

For seat heating optional extra only:

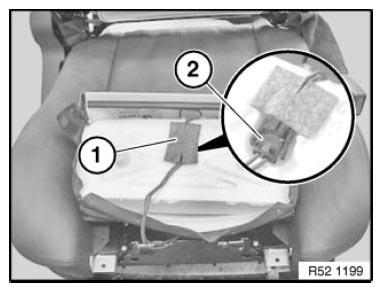

Carefully detach felt (1) from thigh support.

Unfasten plug connection (2) and disconnect.

Installation:

Ensure correct cable routing.

Remove padding from cover.

Fig 3: Identifying Support Felt And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
