52 16... Repairing seat cover for front seat (sport/electrical)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove OPERATING UNIT for seat adjustment

Following parts are needed for repair of a front seat:

2 reinforcements, part number 52 10 7302024 4 blind rivets, part number 83 19 0301421
4 washers, part number 07 11 9904396
Felt tape, self-adhesive, part number 61 13 6908716

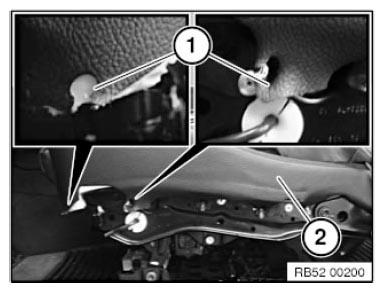

Damage can be seen from loose side section. Mountings (1) on seat cover (2) are torn out.

Fig 1: Identifying Mountings And Seat Cover

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Both mountings must always be repaired.
Following work operations apply for both mountings on seat cover.

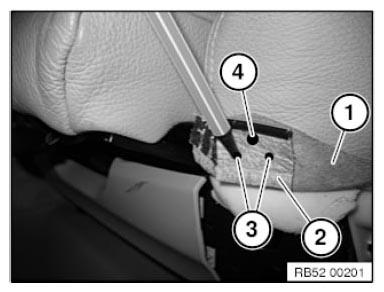

Fold up seat cover (1).

Align securing eye (4) of reinforcement (2) to torn out securing eye of seat cover (1).

Mark attachment points (3) of reinforcement (2) on seat cover (1).

Fig 2: Aligning Securing Eye Of Reinforcement

Courtesy of BMW OF NORTH AMERICA, INC.

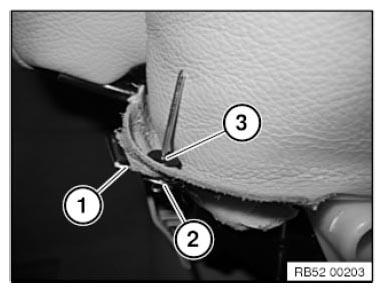

Pierce seat cover (1) at marks (2) for securing with a rivet.

IMPORTANT: Do not damage seat cover not.

Fig 3: Identifying Seat Cover And Rivet Marks

Courtesy of BMW OF NORTH AMERICA, INC.

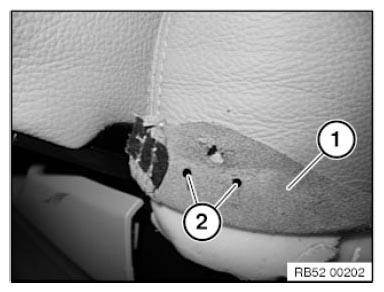

Insert rivet (3) through seat cover.

Rivet reinforcement (1) with washers (2) through reassembled holes in the seat cover.

IMPORTANT: Make sure reinforcement (1) is correctly aligned. Plastic (1) of reinforcement must be secured downward.

Fig 4: Inserting Rivet Through Seat Cover

Courtesy of BMW OF NORTH AMERICA, INC.

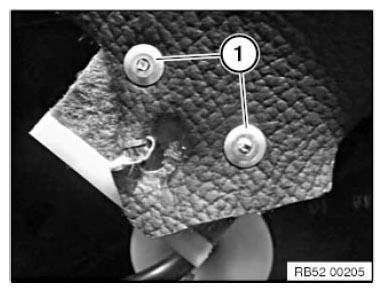

IMPORTANT: Rivet shanks (1) must be completely torn off.

Fig 5: Identifying Rivet Shanks

Courtesy of BMW OF NORTH AMERICA, INC.

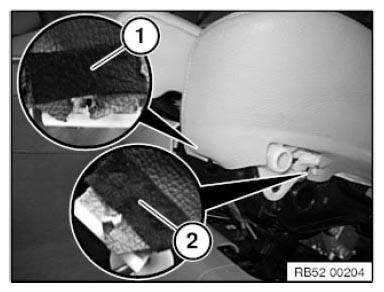

Mask front of rivet connections (1) with felt tape.

Mark front and rear sides of rivet connections (2) with felt tape.

Attach repaired mountings of seat cover in seat frame.

Fig 6: Identifying Front And Rear Sides Of Rivet Connections

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Reassemble the vehicle.
