52 16 405 Replacing backrest cover for left or right front seat

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks

Remove FRONT SEAT .
Remove REAR PANEL on front seat backrest.

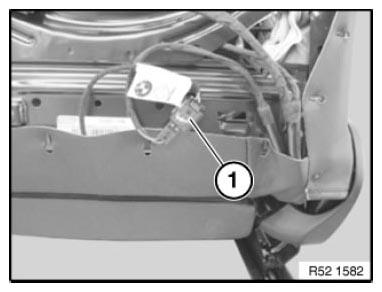

Unfasten plug connection (1) and disconnect.

Fig 1: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

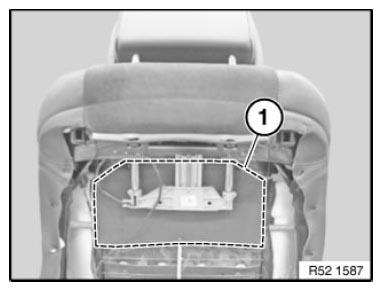

Release all retainers from cover (1).

Installation:

Bend new retainers closed with pliers 52 0 050 .

Remove cover (1).

Fig 2: Identifying Cover Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

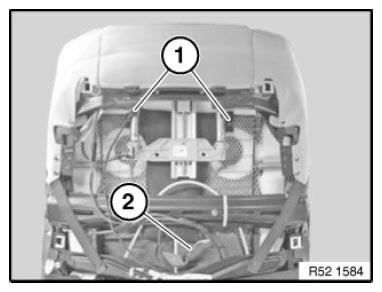

For A/C optional extra only:

Loosen retainers (1).

Installation:

52 0 050 Bend new retainers closed with pliers.

Unlock plug connections (2) and disconnect.

Fig 3: Identifying Plug Connections And Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

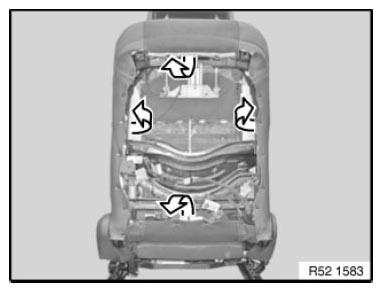

Detach backrest cover all round from backrest frame.

Fig 4: Removing Backrest Cover From Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.

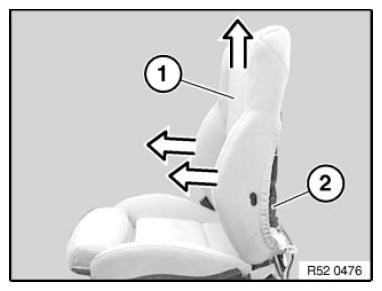

Unhook backrest cover (1) at bottom and sides towards front.

Pull off backrest cover (1) with padding towards top from backrest frame (2).

Fig 5: Removing Backrest Cover From Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.

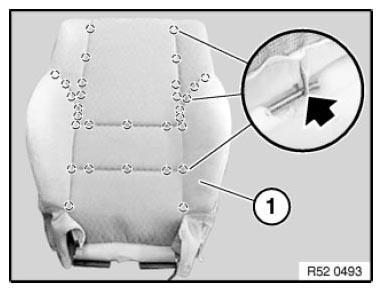

Release all retainers.

Remove backrest cover (1) from padding.

Remove all remnants of clips from backrest cover (1) and padding.

Fig 6: Identifying Backrest Cover Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

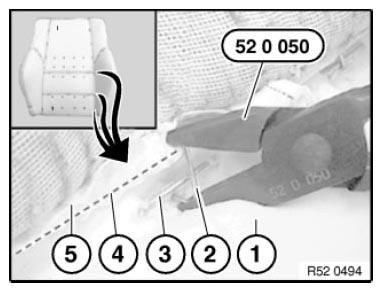

Bend new retainer (2) 52 0 050 closed with pliers.

Padding
Retainer
Trim wire in padding
Trim wire in backrest cover
Backrest cover

Fig 7: Bending Clamp Closed Using Pliers (52 0 050)
Courtesy of BMW OF NORTH AMERICA, INC.

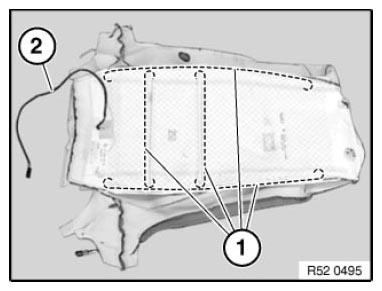

Remove trim threads (1) from backrest cover.

(2) Seat heater cable

Installation:

Push trim threads (1) into new backrest cover.

If necessary, cut into new component.

Fig 8: Identifying Trim Wires And Seat Heater Cable

Courtesy of BMW OF NORTH AMERICA, INC.

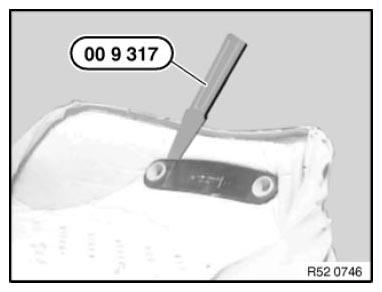

Lever out locking strip of head restraint guide with special tool 00 9 317 .

Installation:

Mount straight front face of head restraint guide towards front.

Fig 9: Removing Locking Strip Of Head Restraint Guide With Plastic Wedge (00 9 317)
