52 13 015 Removing and installing/replacing actuating unit on left or right front seat (normal/semi-electric)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove OUTER COVER on front seat.

Pull lever and release screw (1).

NOTE: Protect seat rails (mechanism) by covering against chips/swarf.

Drill out rivets (2) with 4.2 mm dia. drill bit.

Remove actuating unit.

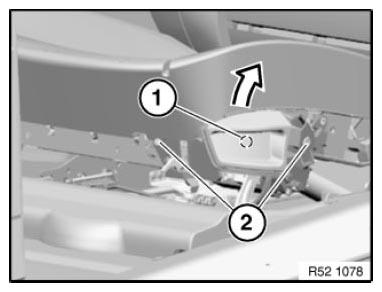

Fig 1: Removing Actuating Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip Bowden cable sleeve (1).

Feed Bowden cable nipple (2) out of fixture (3).

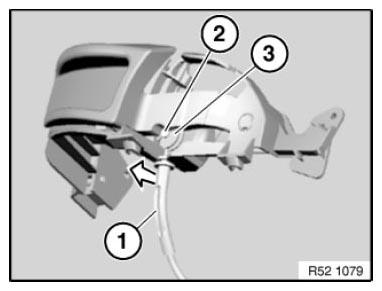

Fig 2: Removing Bowden Cable Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.
