52 14 060 Removing and installing/replacing valve housing for left or right front lumbar support (normal/electric)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove REAR PANEL on front seat backrest.

Release retaining screw (1).

Disconnect electrical plug connection.

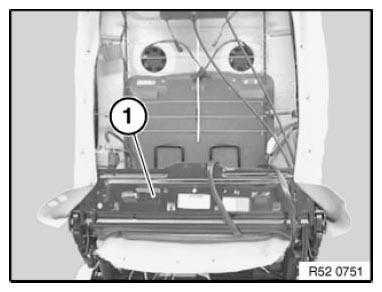

Fig 1: Identifying Electrical Plug Connection Retaining Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect air hoses (1) and (2).

Installation:

Make sure air hoses (2) are correctly connected to valve block (colour coding: red/blue).

Housing on valve block must not be unclipped (leakage). If necessary, clip housing together.

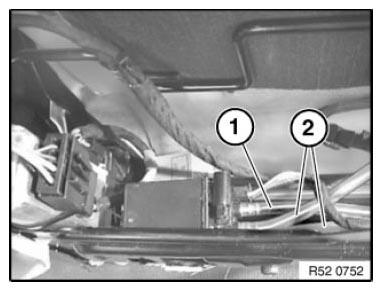

Fig 2: Identifying Valve Block Air Hoses

Courtesy of BMW OF NORTH AMERICA, INC.
