52 17 026 Removing and installing/replacing pressure distributor for active driver's seat

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove SEAT COVER WITH PADDING FOR DRIVER'S SEAT

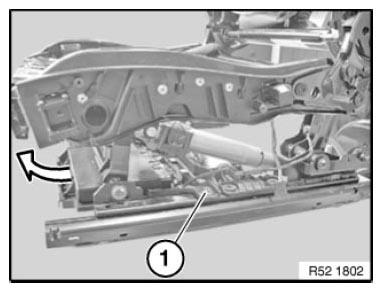

Unscrew left and right nuts (1).

Remove carrier plate towards front from seat mechanism.

Fig 1: Removing Carrier Plate Towards Front From Seat Mechanism

G08529753

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Pressure distributor and pneumatic pockets form a single unit and can only be replaced as a single component.

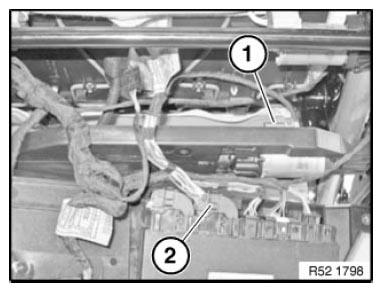

Unlock plug connection (1) on drive and disconnect.

Unlock plug connection (2) on control unit and disconnect.

Fig 2: Identifying Drive Plug Connection And Control Unit Plug Connection

G08529754

Courtesy of BMW OF NORTH AMERICA, INC.

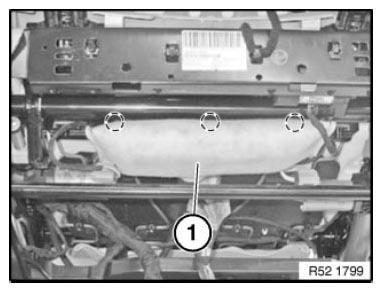

Unclip pressure distributor (1) in marked area.

Installation:

Replace faulty clips.

Fig 3: Identifying Pressure Distributor

G08529755

Courtesy of BMW OF NORTH AMERICA, INC.

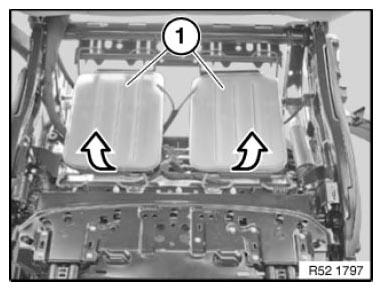

Unclip pneumatic pockets (1) with supports on left and right from flex mat.

Feed pneumatic pockets (1) through flex mat towards bottom.

Fig 4: Identifying Pneumatic Pockets

G08529756

Courtesy of BMW OF NORTH AMERICA, INC.

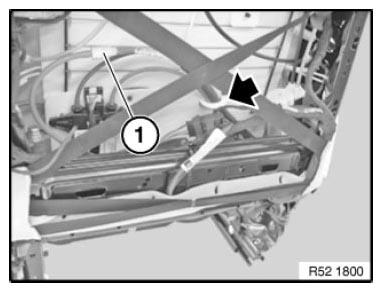

Open quick connector (1).

Feed out hose through fleece mat and backrest frame.

Fig 5: Identifying Quick Connector

G08529757

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Carry out operational check.
