52 30... Removing and installing all ventilation grilles on center console

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Version with rear cabin fan only:

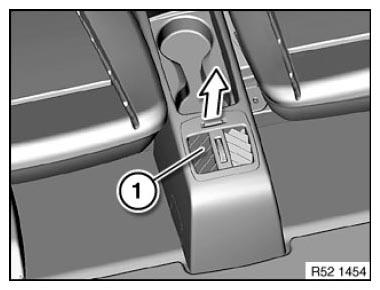

Unclip ventilation grille (1).

Fig 1: Disconnecting Ventilation Grille

Courtesy of BMW OF NORTH AMERICA, INC.

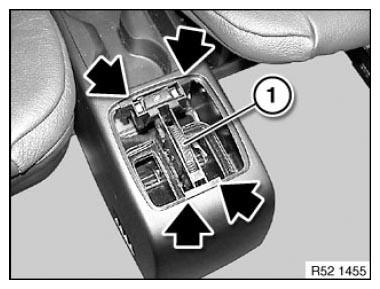

Unclip operating unit (1).

Fig 2: Identifying Operating Unit

Courtesy of BMW OF NORTH AMERICA, INC.

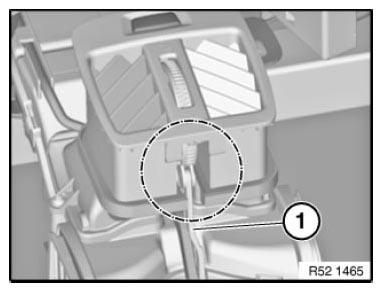

Unclip lever (1) from operating unit.

Fig 3: Identifying Operating Unit Lever

Courtesy of BMW OF NORTH AMERICA, INC.

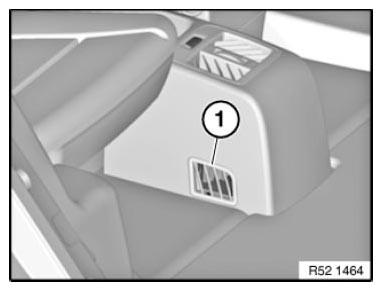

Unclip air outlet grille (1) on left and right with plastic wedge.

Fig 4: Identifying Air Outlet Grille

Courtesy of BMW OF NORTH AMERICA, INC.
