52 30 201 Removing and installing/replacing rear panel on left or right rear seat backrest
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks
- Remove TRIM FOR RELEASE UNIT .
NOTE:
The right side is removed in the same way as the left side.

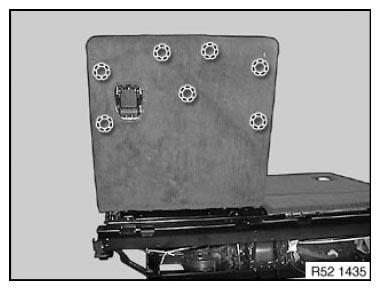

Unclip rear panel from backrest frame.
Installation:
Replace faulty clips.
Insert rear panel with guide at bottom into backrest.
