Overview of glass lid mechanism

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

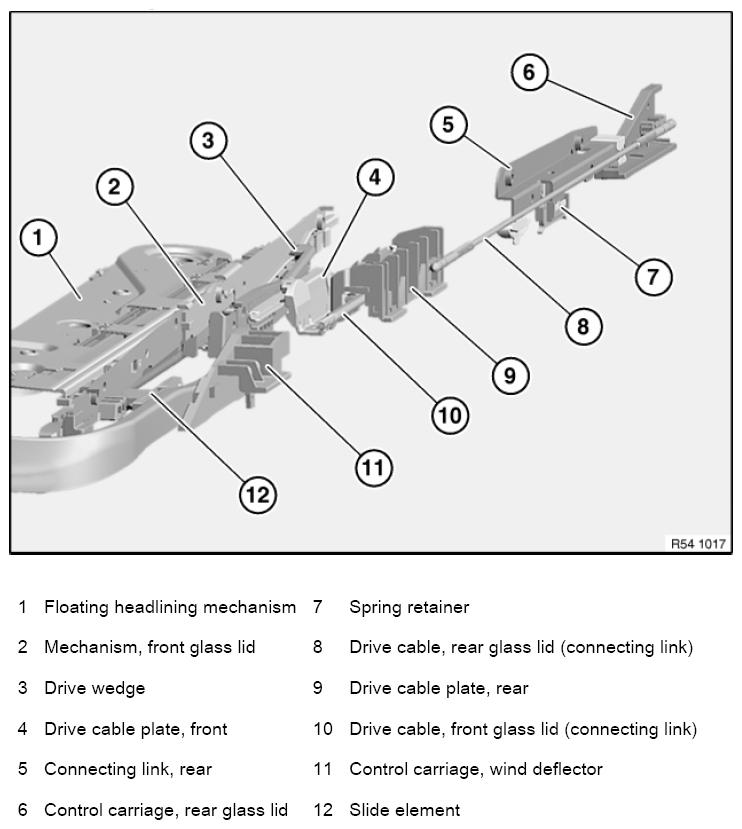

Fig 1: Overview Of Glass Lid Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

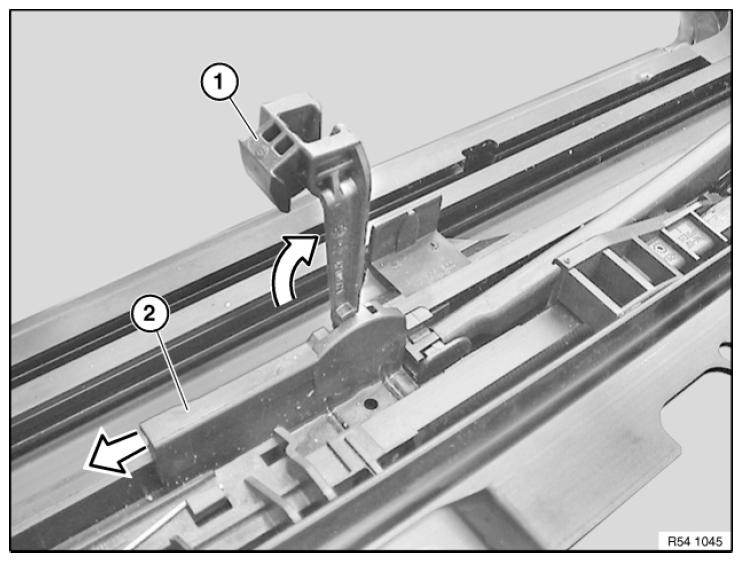

Fig 2: Sliding Front Drive Cable Plate

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, remove drive wedge (1).

Slide front drive cable plate (2) to rear and remove from guide rail.

NOTE: Follow 3-D animation step 10 .

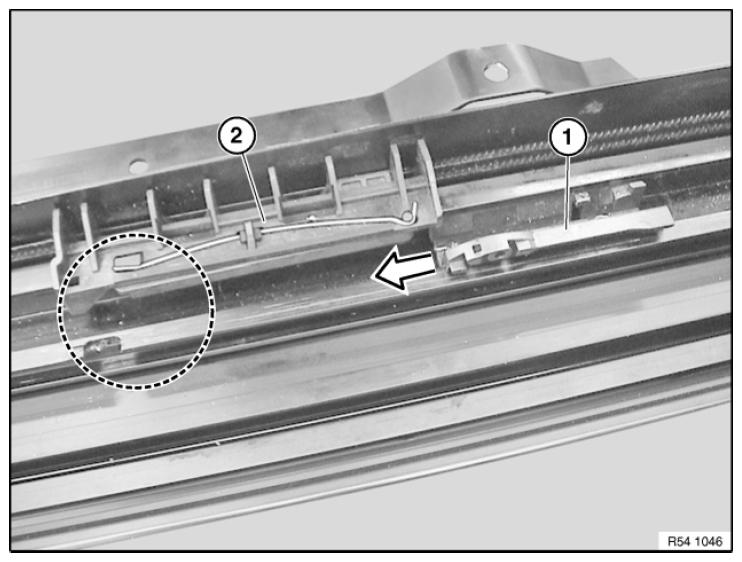

Fig 3: Sliding Drive Cable Plate

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage when installing drive cable plate
Before installation of front drive cable plate (1), rear drive cable plate (2) must be engaged.
Incorrect position can be identified on basis of spring position and level position (marked area).
Check engaging of rear drive cable plate (2) in guide rail.
Slide in front drive cable plate (1).

NOTE: Follow 3-D animation step 23 .

Installation note:

CLEAN GUIDE RAILS OF PANORAMA GLASS ROOF.

Observe GREASE INSTRUCTIONS for replacement parts.
