Necessary preliminary tasks

• Remove GLASS SLIDE/TILT SUNROOF COVER AT FRONT .
• Remove GLASS SLIDE/TILT SUNROOF COVER AT REAR .
• Remove FRONT WATER GUTTER .
• Fully open glass slide/tilt sunroof cover mechanism

To clean the guide rails, use cleaning kit with part number 54 10 7 306 684  .

Insert cleaning cloth (2) in guide rail as illustrated.

Place cleaning tool (1) on cloth (2) and screw-in in direction of arrow.

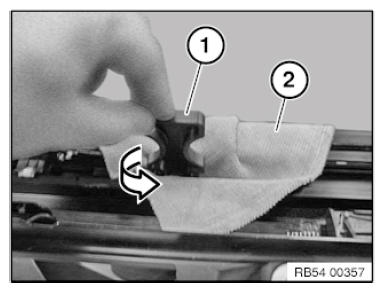

Fig 1: Inserting Cleaning Cloth In Guide Rail

Courtesy of BMW OF NORTH AMERICA, INC.

Pull cleaning kit (1) and (2) from front to rear through guide rail.

Remove dirt contamination from end of guide rail.

Reapply GREASE  to guide rail.

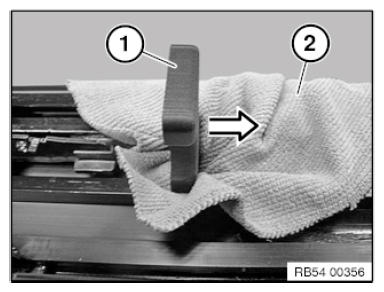

Fig 2: Removing Dirt Contamination From End Of Guide Rail

Courtesy of BMW OF NORTH AMERICA, INC.

Move glass slide/tilt sunroof cover mechanism into tilt position for cleaning remaining front sliding surfaces.

Use cleaning cloth to clean dirt and old grease from following components:

• Control carriage, wind deflector
• Spring carriage
• Lower gate at front
• Upper gate at front
