54 00... Greasing instructions for panorama glass roof

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Use only RHF 1 lubricating grease (sourcing reference: BMW Parts Department) to grease the panorama glass roof.

One packet contains 20 g and is enough for the entire roof.

NOTE: Remove the old grease without fail before applying the new grease.
Apply grease only in the relevant area (new parts).

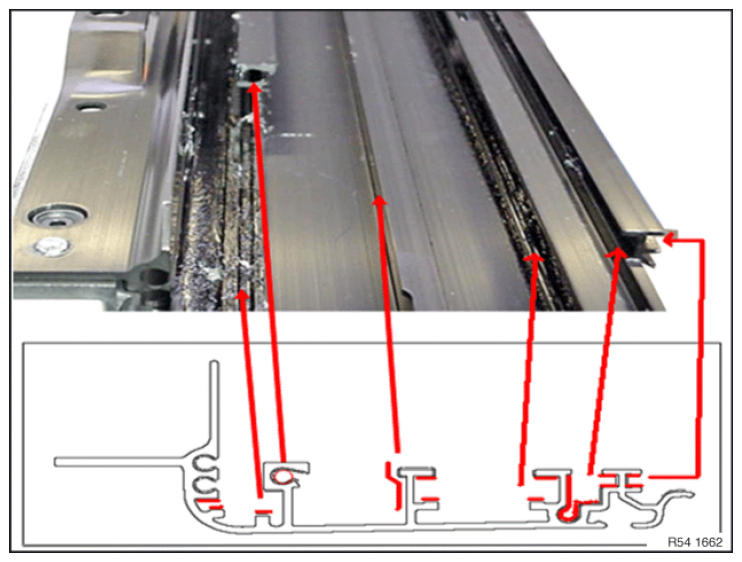

Fig 1: Identifying Grease Guide Rail

G08530088

Courtesy of BMW OF NORTH AMERICA, INC.

Grease guide rail in marked area over entire length.

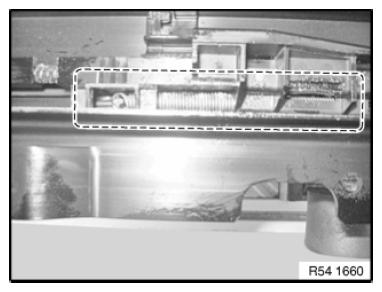

Apply grease to spring.

Fig 2: Identifying Grease Applying Area On Spring

G08530089

Courtesy of BMW OF NORTH AMERICA, INC.

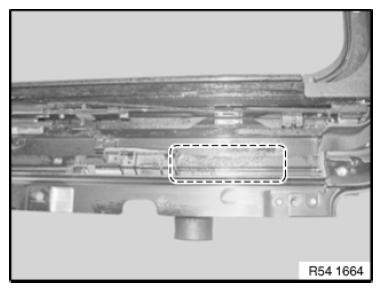

Apply grease in area of wind deflector mechanism.

Fig 3: Identifying Wind Deflector Mechanism Grease Applying Area

G08530090

Courtesy of BMW OF NORTH AMERICA, INC.

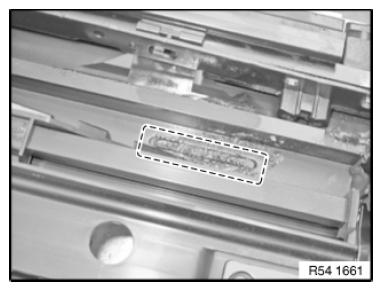

Apply grease to rail in area of recess.

Fig 4: Identifying Rail Grease Applying Area

G08530091

Courtesy of BMW OF NORTH AMERICA, INC.

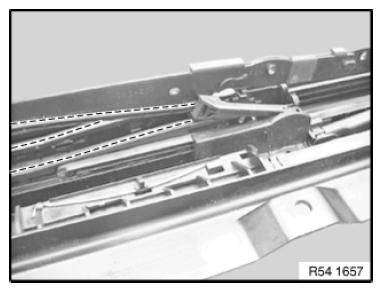

Using a brush, apply grease on both sides over entire length of guide points on mechanism.

Fig 5: Identifying Guide Points On Mechanism Grease Applying Area

G08530092

Courtesy of BMW OF NORTH AMERICA, INC.

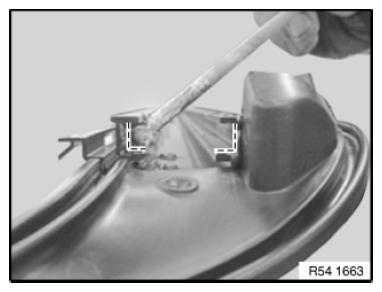

Grease rail in marked area over entire length with a brush.

Fig 6: Greasing Rail In Marked Area Using Brush

G08530093

Courtesy of BMW OF NORTH AMERICA, INC.

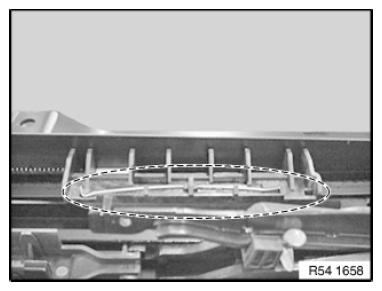

Using a brush, apply grease between mechanism and rail.

Fig 7: Identifying Grease Between Mechanism And Rail

G08530094

Courtesy of BMW OF NORTH AMERICA, INC.

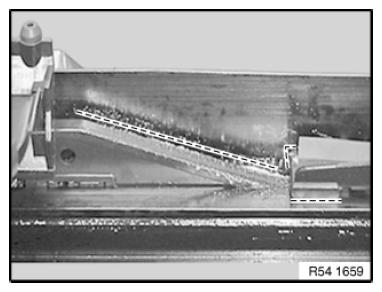

Apply grease to lower connecting link and surrounding area.

Fig 8: Identifying Lower Connecting Link And Surrounding Grease Applying Area

G08530095

Courtesy of BMW OF NORTH AMERICA, INC.
