Height adjustment

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Check height of glass slide/tilt sunroof panel (1) in relation to body (2) with special tool 00 9 315 .

Measuring range on flat side of glass slide/tilt sunroof panel (not in the area of the corner of the glass slide/tilt sunroof panel).

Height:

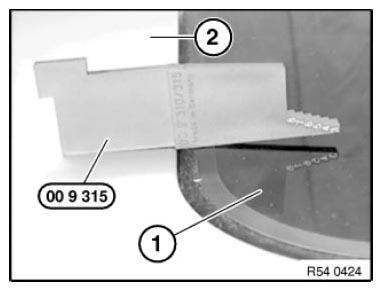

Fig 1: Checking Height Of Glass Slide/Tilt Sunroof Panel Using Special Tool (00 9 315)

Courtesy of BMW OF NORTH AMERICA, INC.

Front edge of glass slide/tilt sunroof panel at front 0 to 1 mm under roof edge.
Rear edge of glass slide/tilt sunroof panel at front 0 to 0.5 mm over glass slide/tilt sunroof panel at rear.
Rear edge of glass slide/tilt sunroof panel at rear 0 to 1 mm over roof edge.

Check function and adjustment.
