Distance setting
WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

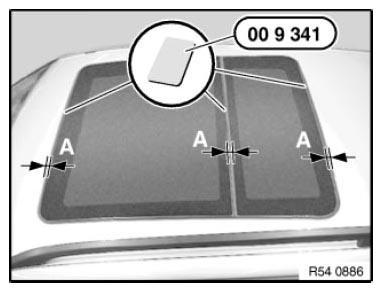

Distance A between body and glass slide/tilt sunroof panel (without seal):
- = 5.8 ±0.3 mm all round
Check that distance between glass slide/tilt sunroof covers and body is the same with special tool 00 9 340 .
Slide special tool 00 9 340 between gasket and insert. It must be possible to slide the card against the same level of resistance.
