Wind deflector control carriage

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

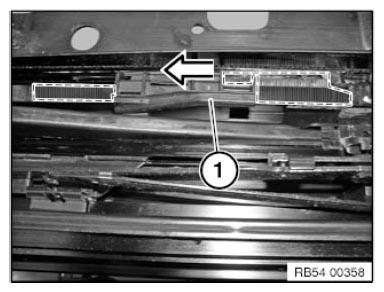

Slide wind deflector control carriage (1) to the front for cleaning and afterwards reapply GREASE .

Fig 1: Sliding Wind Deflector Control Carriage

Courtesy of BMW OF NORTH AMERICA, INC.

Use cleaning cloth to clean guide rail at spring carriage in the marked area.

Wipe marked area of top and bottom gate with the cloth.

Reapply GREASE to components.

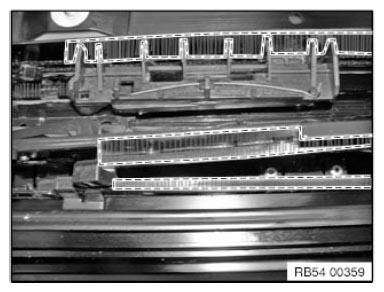

Fig 2: Identifying Spring Carriage Area

Courtesy of BMW OF NORTH AMERICA, INC.

Move glass slide/tilt sunroof cover mechanism into "closed" position for cleaning rear sliding surfaces.

Use cleaning cloth to clean dirt and old grease from following components:

Sliding surface of rear bottom gate.
Guide rail up to rear end of glass slide/tilt sunroof cover.
