18 12 031 Replacing rear silencer (S63)

Special tools required:

• 31 2 220

Support rear silencer with special tool 31 2 220 and a suitable universal lifter.

Fig 1: Supporting Rear Silencer Using Special Tool (31 2 220)

Courtesy of BMW OF NORTH AMERICA, INC.

Carry over separation point to faulty rear silencer (3) and mark out.

Secure rear silencer against falling off.

Cut through exhaust pipes at marked point with a suitable tool.

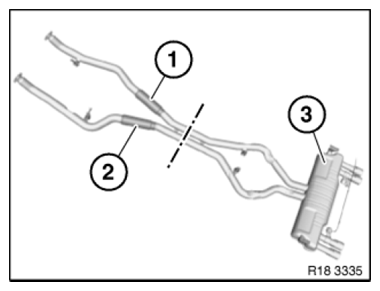

Fig 2: Identifying Silencers

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 18 20 3AZ .

Fig 3: Identifying Exhaust System Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Graphic shows the left side, the procedure for the right side is identical.

Pull off vacuum hose from the exhaust flap.

Fig 4: Identifying Exhaust Flap

Courtesy of BMW OF NORTH AMERICA, INC.

Picture shows the left side, the procedure for the right side is identical.

Unscrew nuts (1).

Tightening torque 18 20 4AZ .

Remove earth strap.

Lower and remove rear silencer with assistance of a second person.

Fig 5: Identifying Grounding Strap Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Install, adjust new rear silencer and connect with hose clamp.

Centre clamp and tighten down.

Tightening torque 18 31 6AZ .

The procedure is identical on both sides.

Fig 6: Identifying Silencer With Clamps

Courtesy of BMW OF NORTH AMERICA, INC.
